Description:

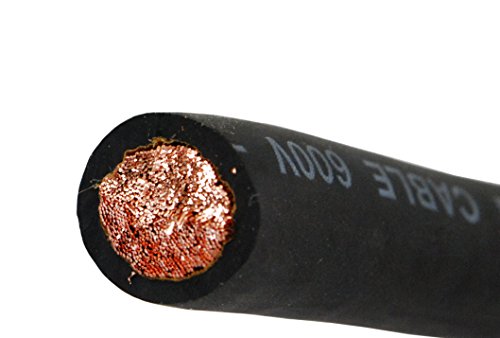

Highly flexible stranded No. 30 bare copper conductor insulated with high grade EPDM. A paper separator is utilized to enchange stripability. Maximum conductor operating temperature is 105C in circuits not exceeding 600 volts. Minimum temperature rating -50C. In addition to welding applications, TEMCo Easy-Flex welding cable can also be used in car audio & battery installations, RV & golf cart wiring, solar & inverter wiring, battery banks and any other use that requires rugged, highly flexible cable. Note: If more than 1 length of wire is bought, 99% of the time it will be shipped on the same roll. Example, if a 10 ft length and a 25 ft length are bought, then you would receive 35 ft on one roll. Feet markings are indicated on the jacket of the wire. Features: 325 Max Amps (up to 50 feet), Rated up to 600 volts, -50C to +105C (-58F to +221F) TEMCo Easy-Flex has a rugged EPDM jacket and is highly flexible. Annealed 30 gauge bare copper conductor. Nominal OD: 0. 564", Conductor stranding: 1196/30 Resistant to Cuts, Tears, Abrasion, Water, Oil, Grease and Flame. NEC article 630 electric welders, Meets SAE J1127 and ASTM B-172 standards. RoHS Compliant.
