Description:

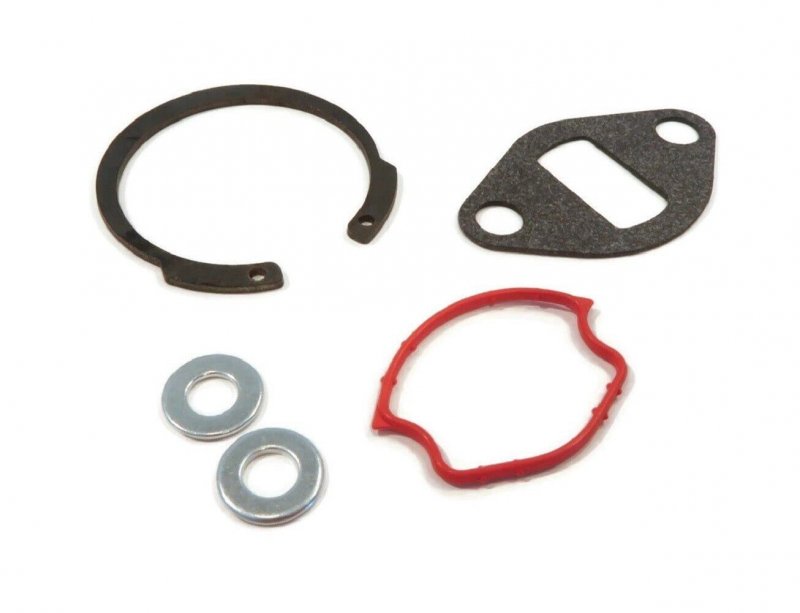

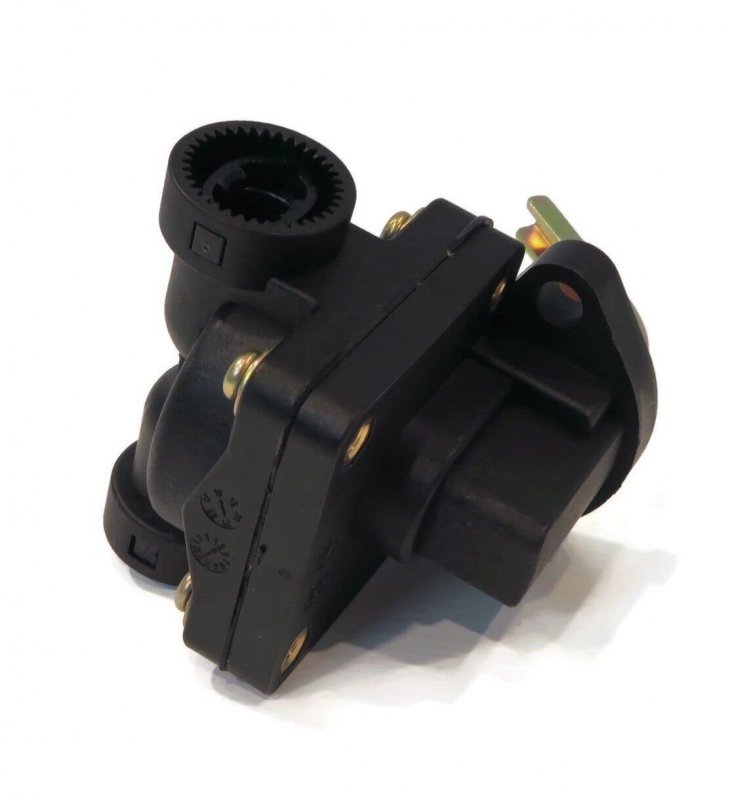

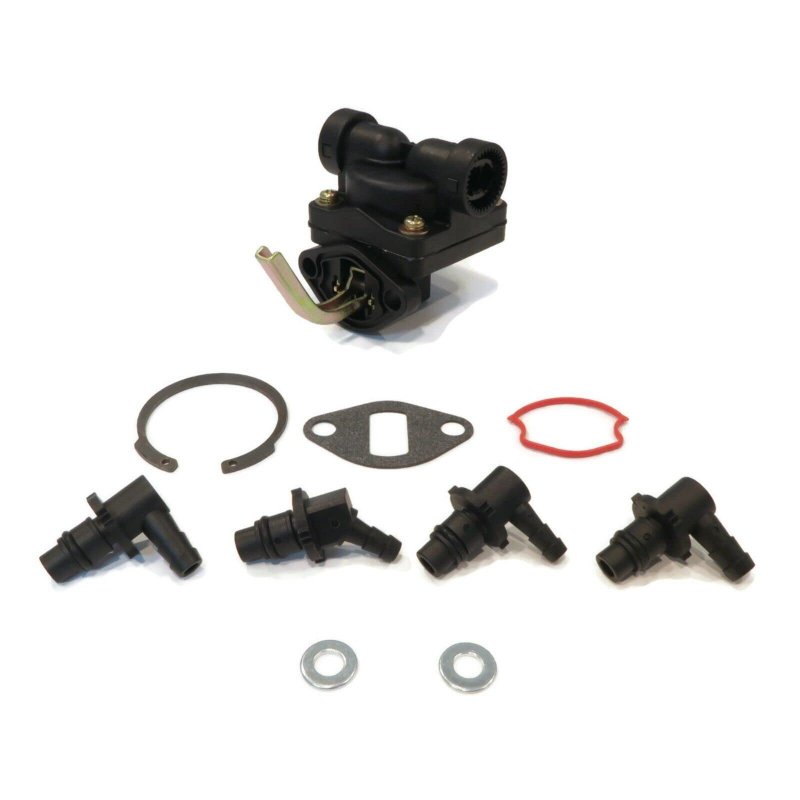

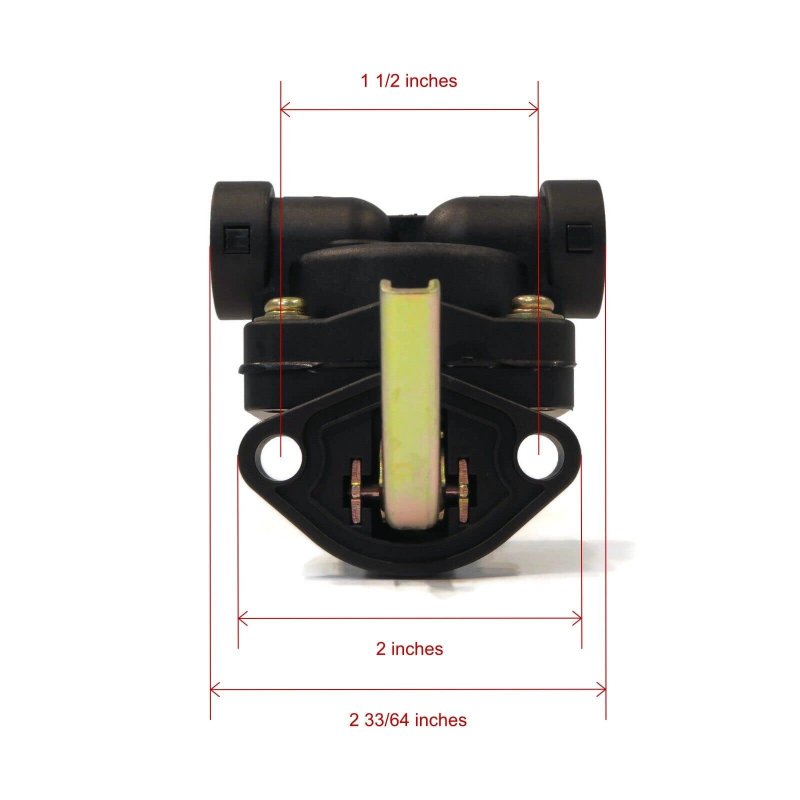

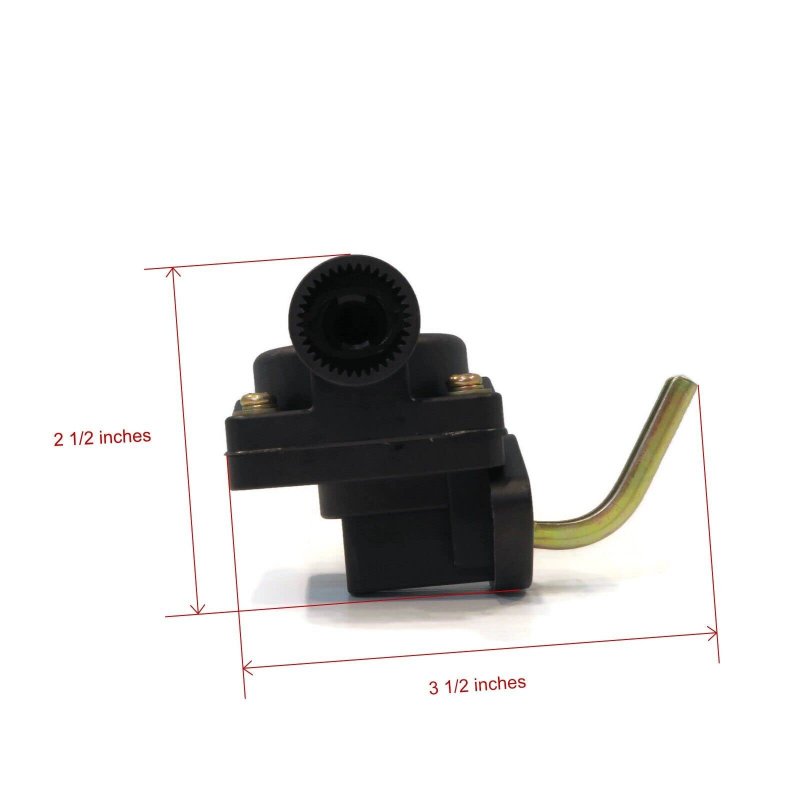

The ROP Shop replacement Fuel Pump Kit for John Deere AM134269, AM34743, AM37178, AM37539 Lawn Mower Tank. Specs - Arm Length: 1 5/8". Inlet & Outlet at a 90 degree angle to arm. Twist lock fit. Material: Plastic. Refer to images 2 & 3 for more information. Includes - (1) Fuel Pump, (1) Snap Ring (tool), (1) O-Ring Gasket, (4) Elbow Fittings, (1) Gasket & (2) Flat Washers; comes as shown in the first image. Fits 1/4" inner diameter fuel line. NOT compatible with greater than 10% ethanol fuel. Inlet & Outlet fittings must be installed on the new fuel pump before mounting. The pump housing incorporates a special locking feature to retain the fittings. The release tabs must be depressed when the fittings are installed or removed otherwise damage to the fitting and/or o-rings may occur and create a potential fuel leak. DO NOT attempt to install or force the fittings into place without first depressing the tabs. The enclosed snap ring will serve as a tool for this purpose.
