Description:

The ROP Shop Ignition Coil for Lawn-Boy Lawn Mower 7002, 7003, 7004, 7010, 7011, 7012, 7020.

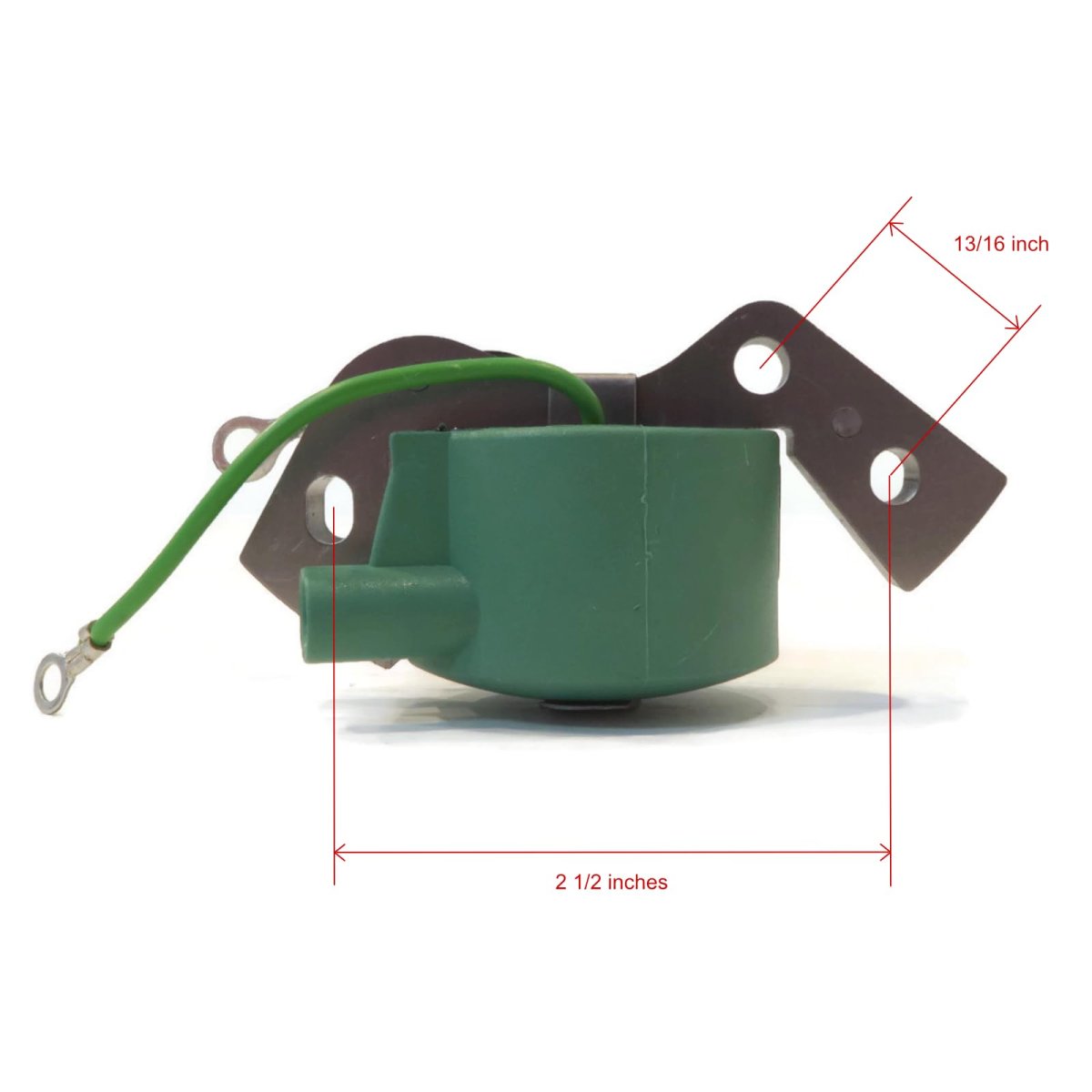

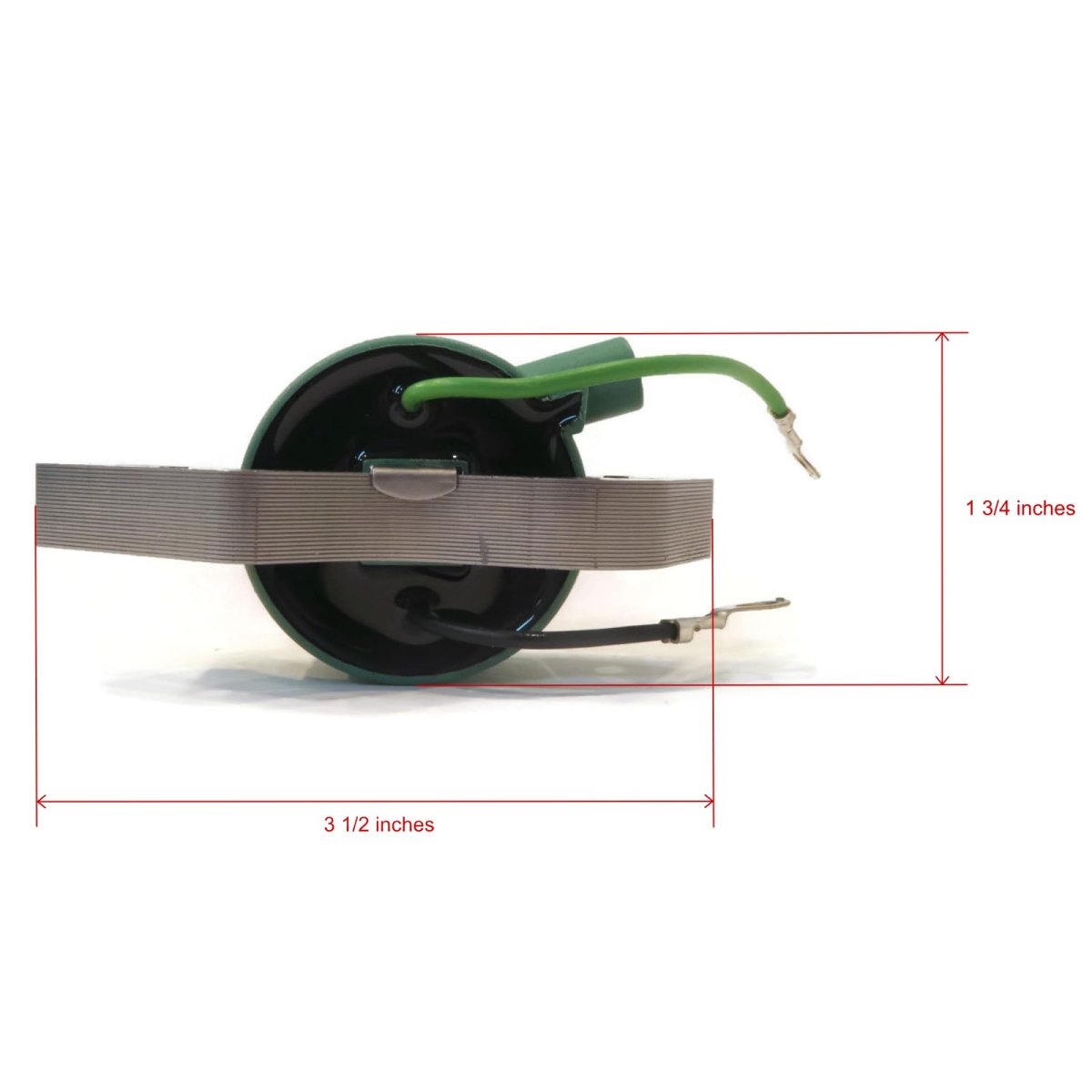

Specs - Refer to images 2 & 3 for more information.

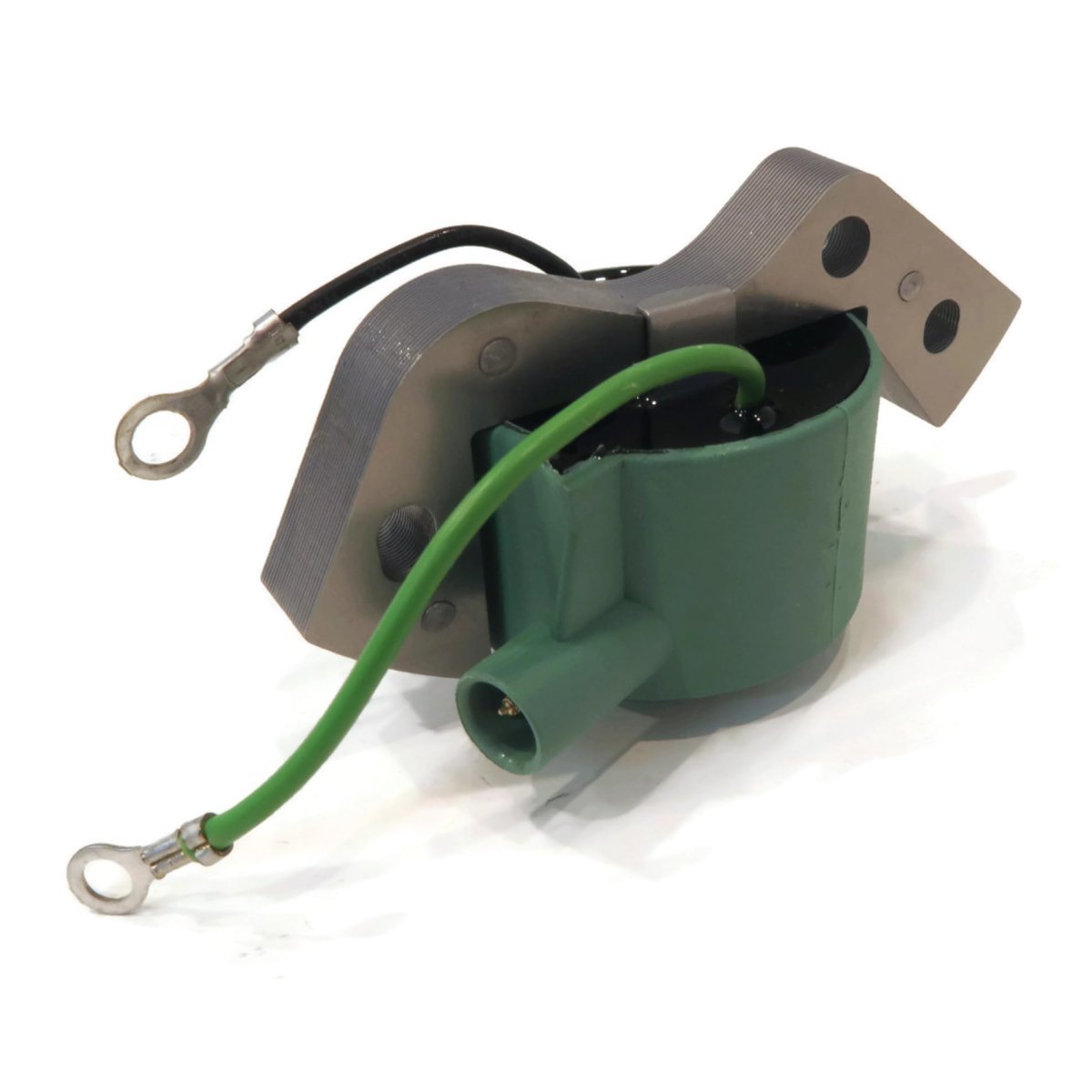

Includes - (1) Ignition Coil; comes as shown in the first image.
This ignition coil fits Lawn-Boy C-series engines only and is NOT compatible with D-series models. It is a compatible replacement for OMC "Universal" coils and can be used to repair Wico & Phelon coils fitting a 7/16" diameter laminate pole.
Vintage-style ignition coil with a non-bonded laminate design and retainer tab. The coil can be removed from the laminate and converted for outboard applications (40 HP and under) from the 1950s & 1960s. Compatible with OMC, Mercury, Elgin, West Bend, Chrysler, Wizard, McCulloch, Firestone, Corsair, Scott Atwater, and similar brands (modifications required: filing the laminate and rerouting the spark plug wire).
