Description:

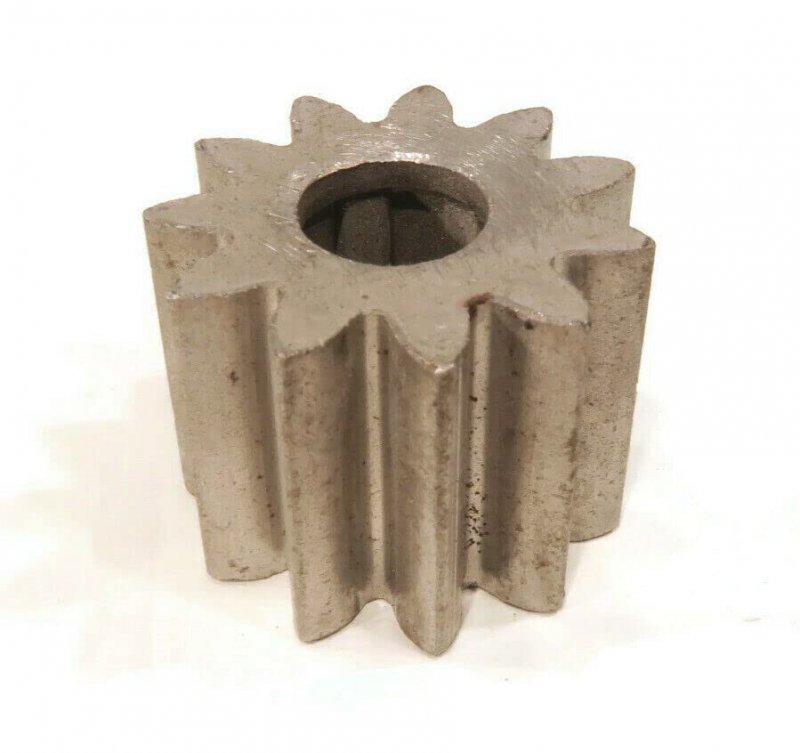

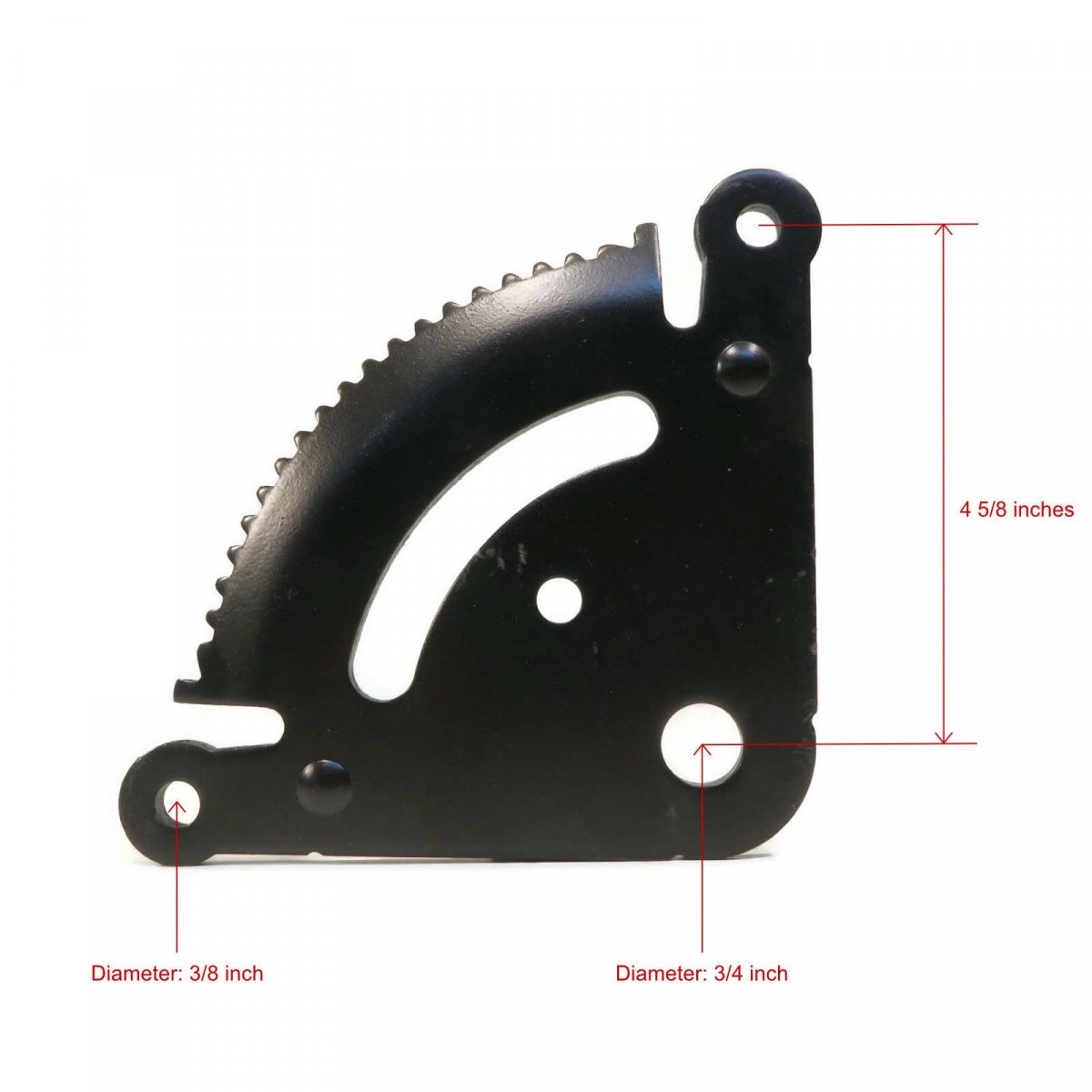

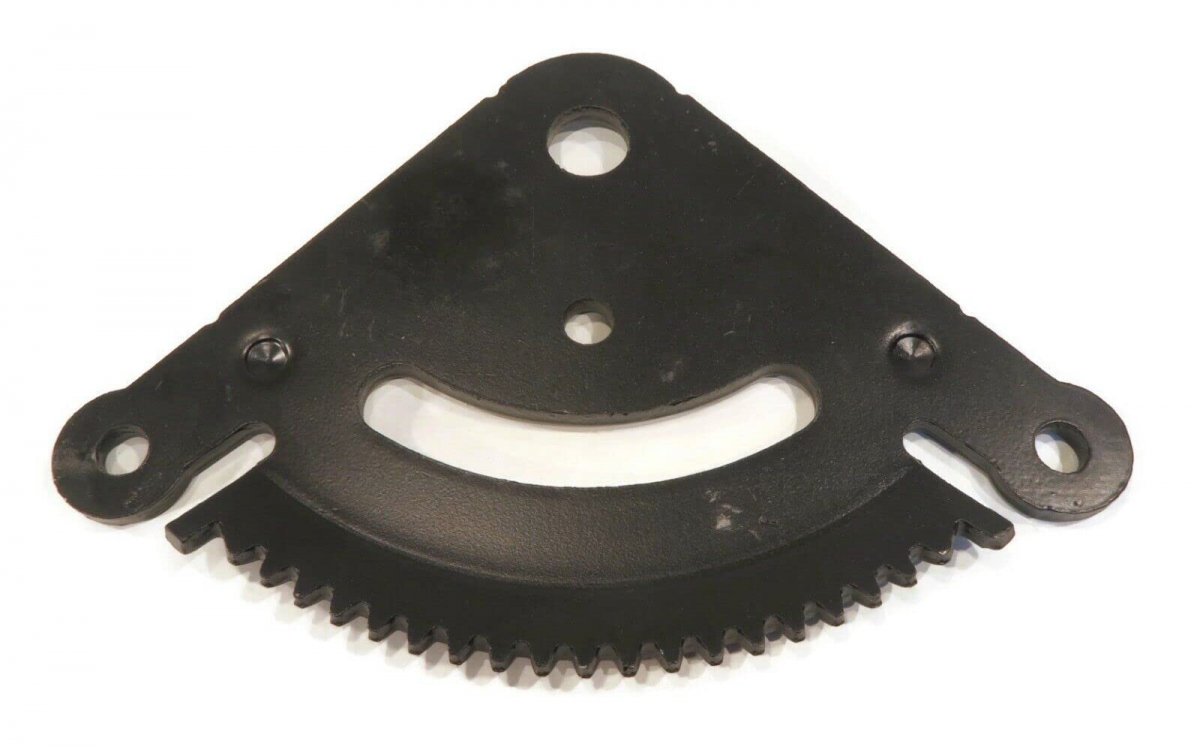

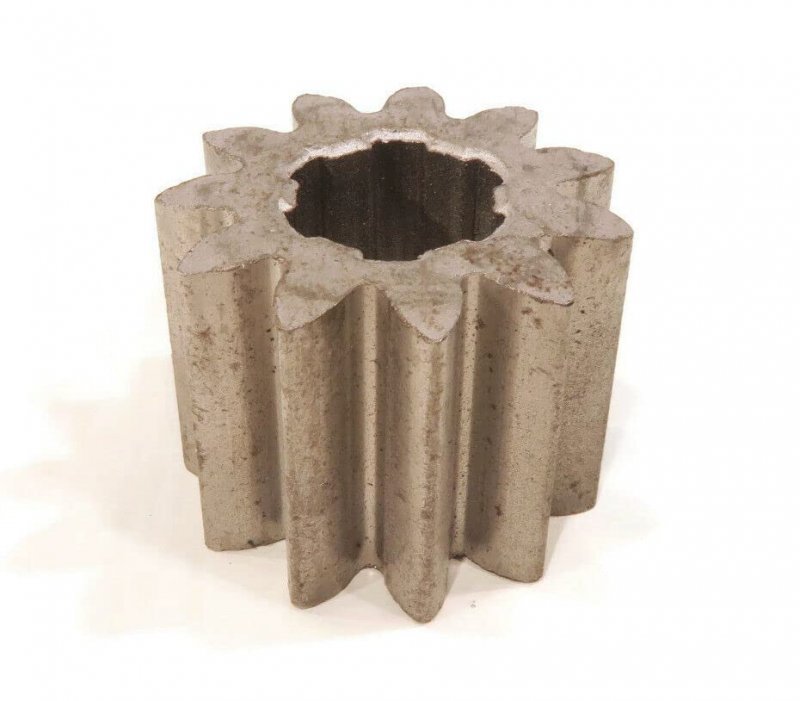

The ROP Shop replacement Steering Sector & Pinion Gear Kit for John Deere D130, D140, D150, D160, D170. Specs - Sector Gear Dimensions: 8 1/2" Diameter. 11/16" Inner Diameter. 5 5/8" Length. 5/16" Thickness. Pinion Gear Dimensions: 11 Teeth. 1" Height. 1 3/8" Outside Diameter. Shaft Bushings Dimensions: 1 1/8" Diameter without Tabs (1 5/16" with tabs). 5/8" Inner Diameter. 7/8" Height. Refer to image 2 for more information. Includes - (1) Steering Sector Gear, (1) Steering Pinion Gear, (1) Bushing, (2) Screws, (1) Washer, (3) Lock Nuts & (2) Steering Shaft Bushings; comes as shown in the first image. This kit is for/fits John Deere 102, 105, 107S, 115, 125, 135, 145, 155C, 190C, 92H, D100, D105, D110, D120, D125, D130, D140, D150, D160, D170, LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, X110, X120, X125, X130R, X135R, X140, X145, X155R, X165 Lawn Tractors.
