Description:

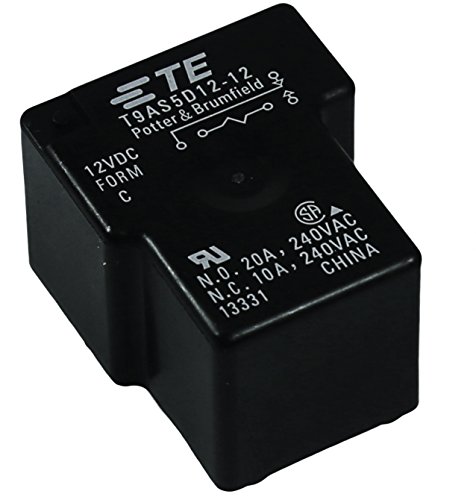

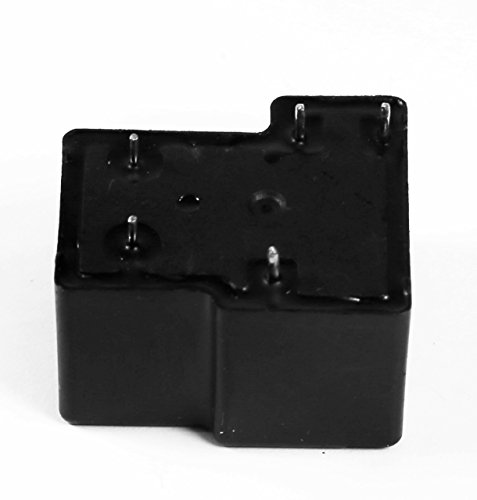

Overview: T9A Series, DC Coil 30A PCB or Panel Mount Relay: 30A switching in 1 form A (NO) and 20A in 1 form C (CO). Plastic sealed case available. Meets UL 508 and 873 spacing - 3. 18mm through air, 6. 36mm over surface. Option for load connections via 0. 250"" (6. 35mm) Q. C. terminals. UL class F insulation system standard. Relay Type General Purpose Coil Type Non Latching Coil Type Non Latching Coil Current83mA Coil Voltage12VDC Contact FormSPDT (1 Form C) Contact Rating (Current)20A Switching Voltage277VAC - Max Turn On Voltage (Max)9 VDC Turn Off Voltage (Min)1. 2 VDC Operate Time15ms Release Time15ms Features Insulation - Class F, Sealed - Fully Mounting Type Through Hole Termination StylePC Pin Operating Temperature-55C 85C Contact MaterialSilver Cadmium Oxide (AgCdO) Coil Power 1 W Coil Resistance 144 Ohms Features: TE Brand 12V DC 20A POWER RELAY SPDT 1 FORM-C 12V Operating Temperature-55C 85C Coil Type Non Latching.
