Description:

The Universal Oil Pan Baffle Plate Kit is a customizable baffling system designed to prevent oil starvation and catastrophic engine failure in performance builds. It ensures the oil strainer remains submerged by controlling oil movement under high G forces.

• Material SUS304 stainless steel
• Application Universal fit for any wet sump oil pan

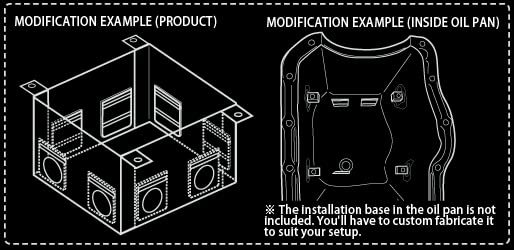

• Customization Laser cut kit that can be shaped and welded to fit specific pan sizes
• Valve System 10 one way rubber valves that direct oil toward the pickup and block it from flowing away

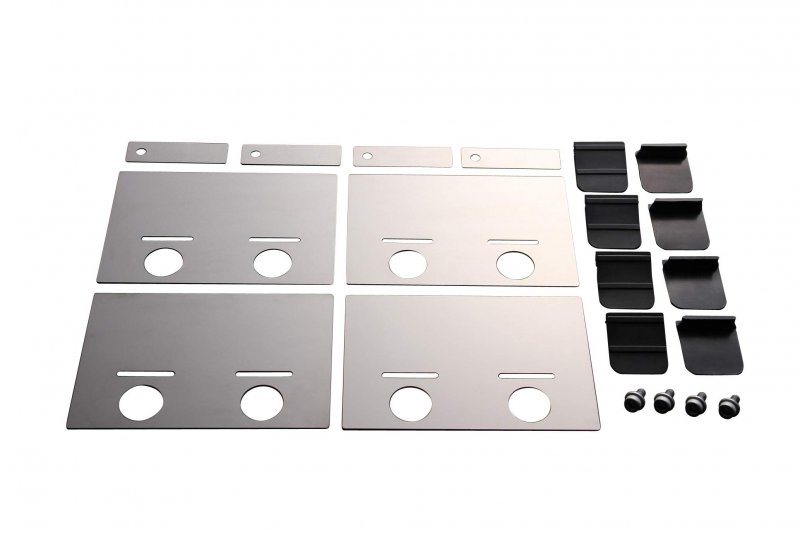

• Kit Components 4 valve plates, 4 mounting brackets, rubber valves with spares, and M6 bolts
• Primary Benefit Prevents air from being sucked into the oil system during high G cornering, acceleration, and braking
• Item Dimensions 6 inches by 6 inches by 6 inches
• Part Number TM TB201A 0000A
