Description:

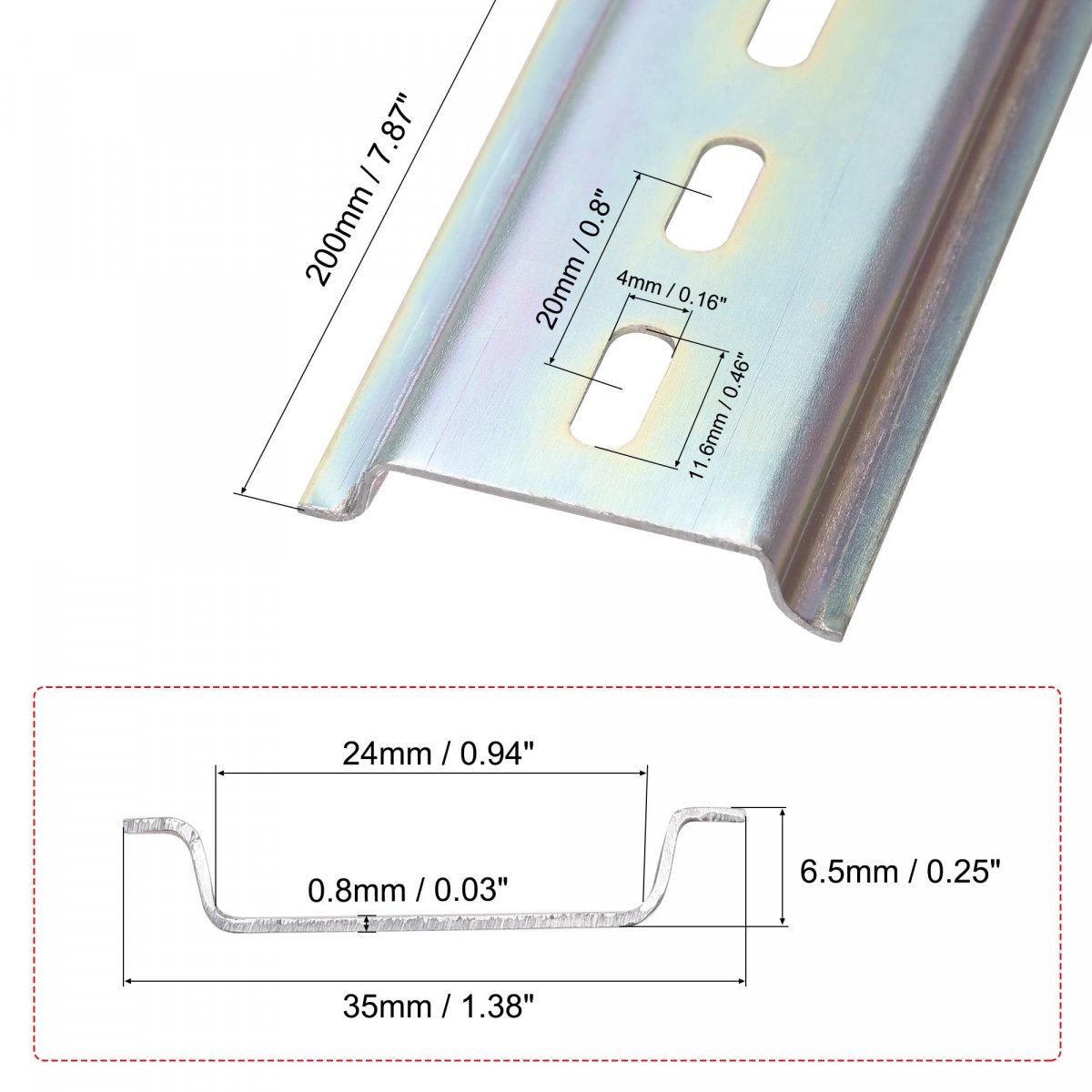

Specification---Dimension: 200 x 35 x 6.5mm / 7.87" x 1.38" x 0.25" (L*W*H);Oval Hole Size: 11.6 x 4mm / 0.46" x 0.16" (L*W); Slot Width: 24mm / 0.94"Main Color: Bronze Tone; Hole Center Distance: 20mm / 0.8". Application - Two or more screws pass through the mounting holes to fix the rail at a predetermined position, and the equipment is fixed on the rail through a standard structure to achieve the purpose of fast installation and disassembly of the equipment. How to use---choose the appropriate rail according to the required length, and fix the caliper through the mounting holes arranged periodically on the rail. Noted---Insufficient materials and unreasonable structure will cause the caliper to be easily deformed by force, which may cause the parts installed on it to be loose and easy to loosen.. Advantages-simple installation, easy to use, light weight, standardized products.
