Description:

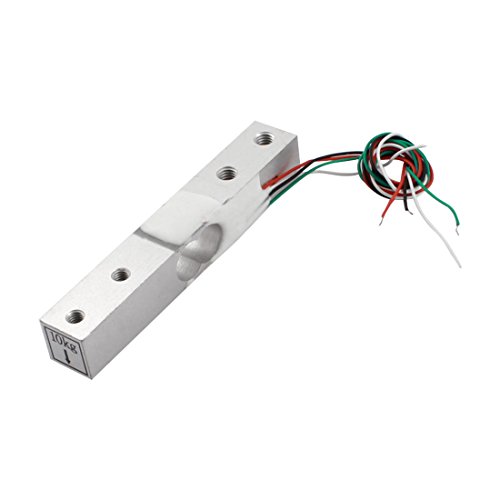

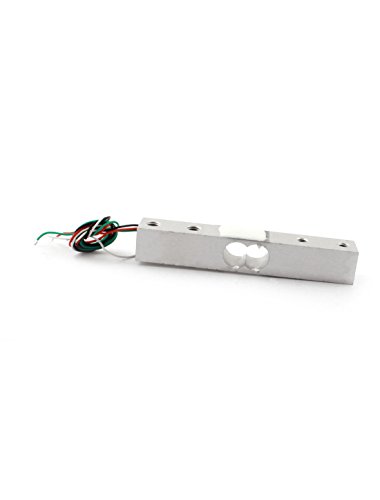

Used widely in home kitchen scales, platform balance, belt scales and other electronic weighing devices. Model # a14071900ux0057 Features: Product name: load Cell; model: yzc-133; rated load: 10kg /22lb; rated output: 1+/-0. 15mV/V Input resistance: 1066 +/- 20 Ohm; output resistance: 1000 +/- 20 Ohm; insulation resistance: 2000 Ohm; working temperature: -20C to +65C Compensated temperature range: -10C to +50C; Safety overload: 120 percent F. S; recommend excitation Voltage: DC 5V; max excitation Voltage: DC 10V Total Size: 81 x 12. 5 x 12. 5mm /3. 1" x 0. 5" x 0. 5"(L*w*t); thread diameter: 3. 4mm / 0. 12"; Hole center distance: 40mm/1. 6", 70mm/2. 8"; cable Length: 240mm/ 9. 4 Material: aluminum alloy; color: Silver Tone; weight: 32G; package content: 1 x load Cell.
