Description:

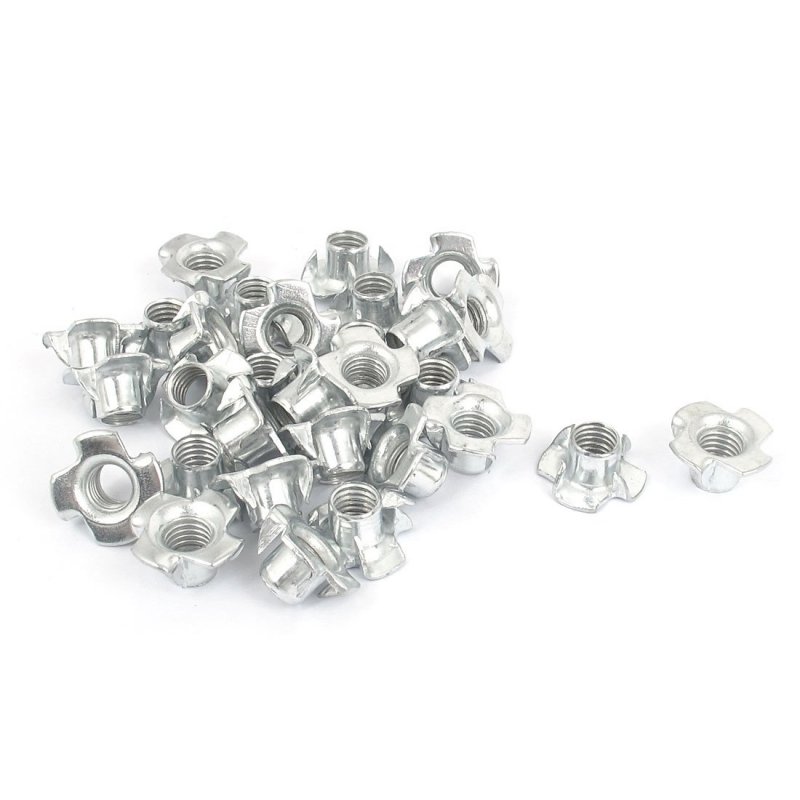

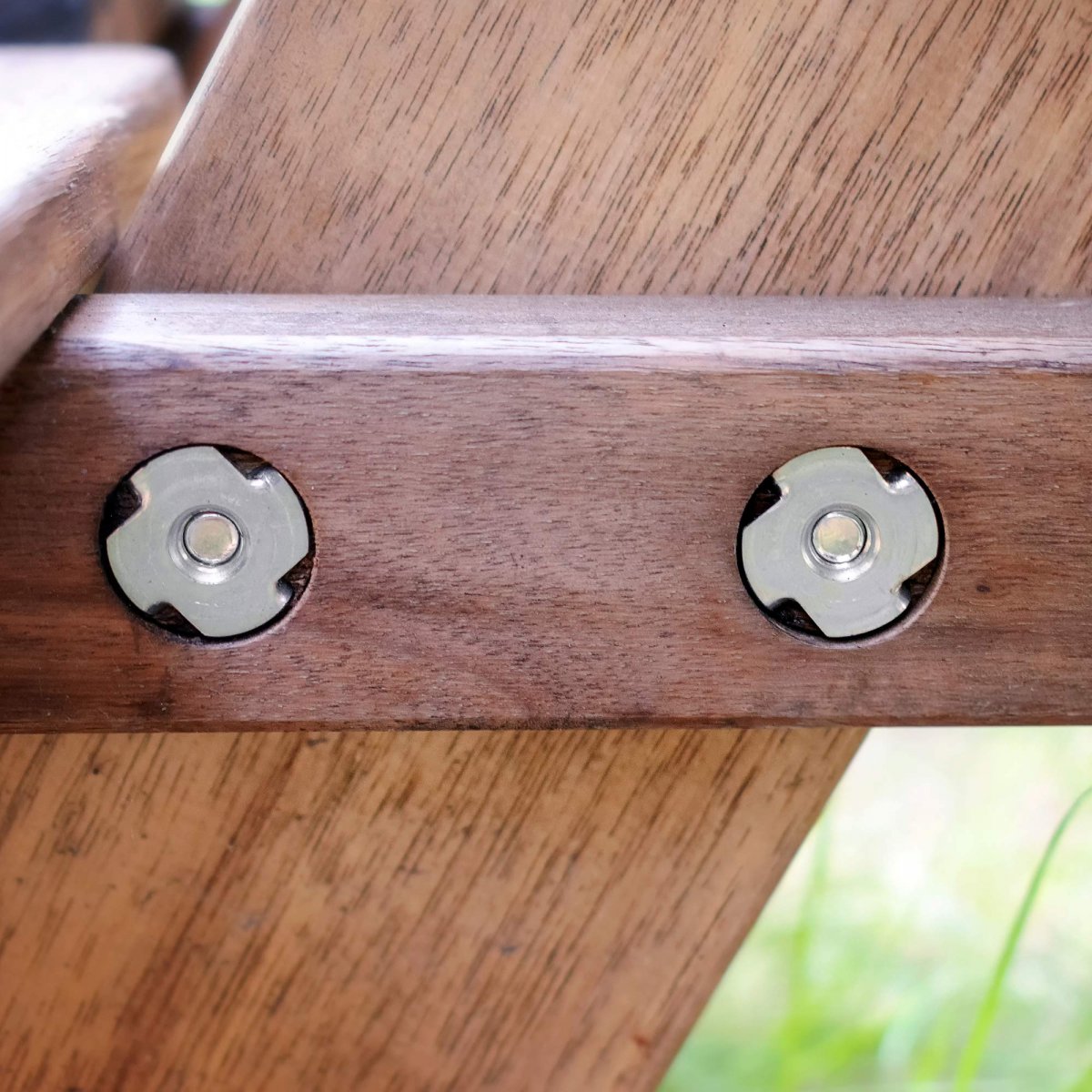

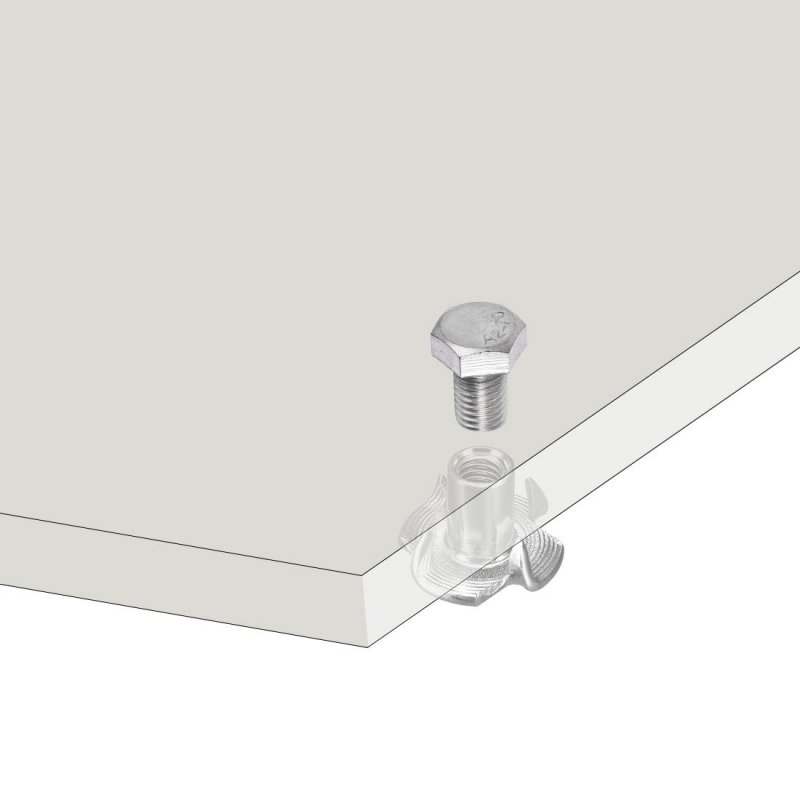

Base info: Thread Diameter: M8/0.3"; Pitch: 1.25mm; Height: (H1)9mm/0.35"; Total Diameter: (D)19mm/0.7"; Base Plate Thickness: (T)1mm/0.04". Usage: Very suitable for solid wood products, plywood, particleboard, to play a very strong connection role. Commonly used in fixed cabinets, table and chair legs, leather bags, climbing wall installations, etc.. Advantages: It is made of carbon steel, precision threaded by machining, heat treatment strengthening process, surface galvanized, corrosion resistance and high strength. The 4 anti-claws are deeply inserted into the locked object, which is not easy to loosen, supporting all your projects.. How to use: First make a hole according to the outer diameter of the rod, insert the outer rod of the pronged tee nut into the hole, hit the bottom of the nut flange with a hammer, let the 4 claws be inserted into the wood, and a stable and firm nut connection is realized.. Note: 1. Do not directly tap the thread to avoid making the thread unusable. 2. According to the size of the connected load, select the corresponding t-nut to match to avoid falling off due to excessive load..
