Description:

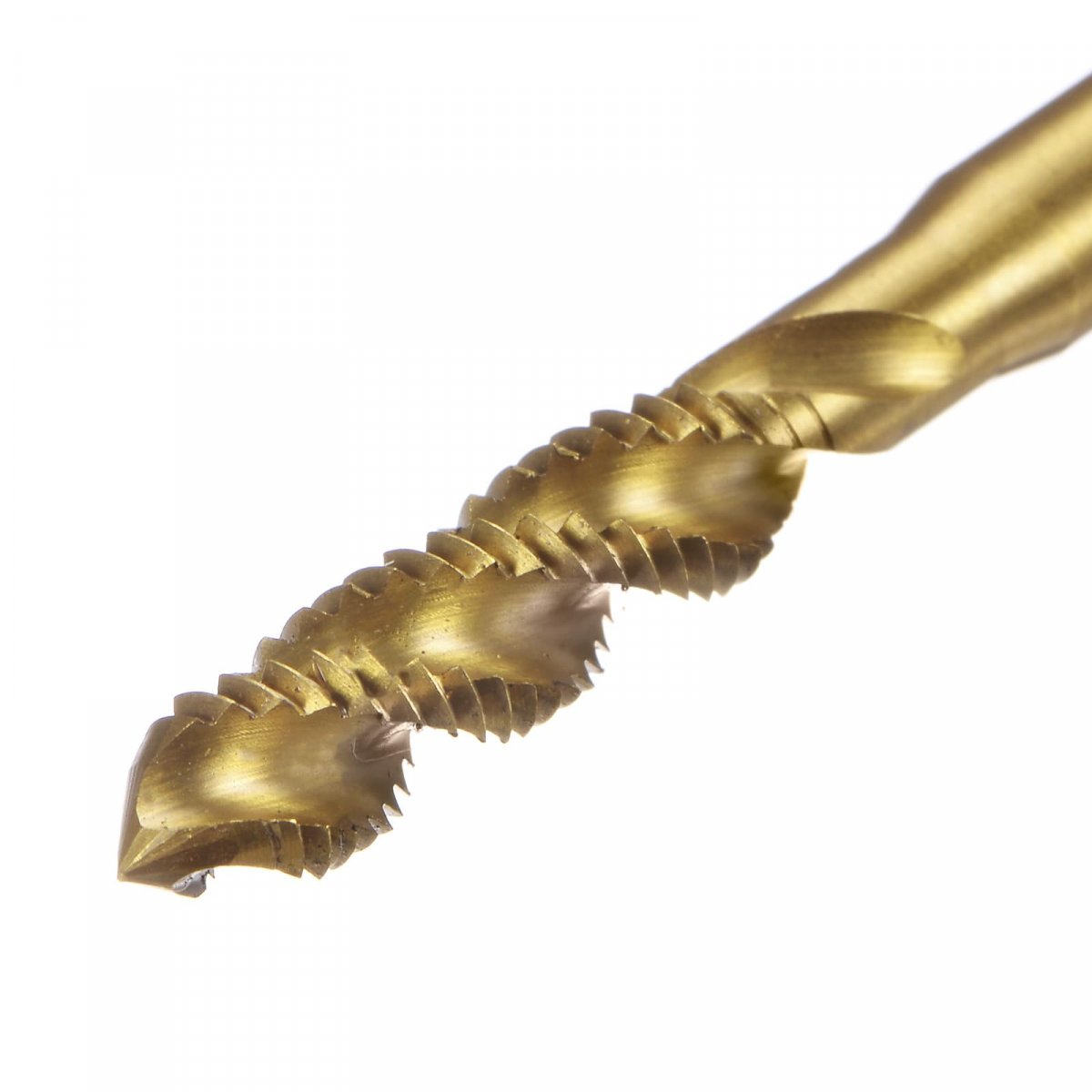

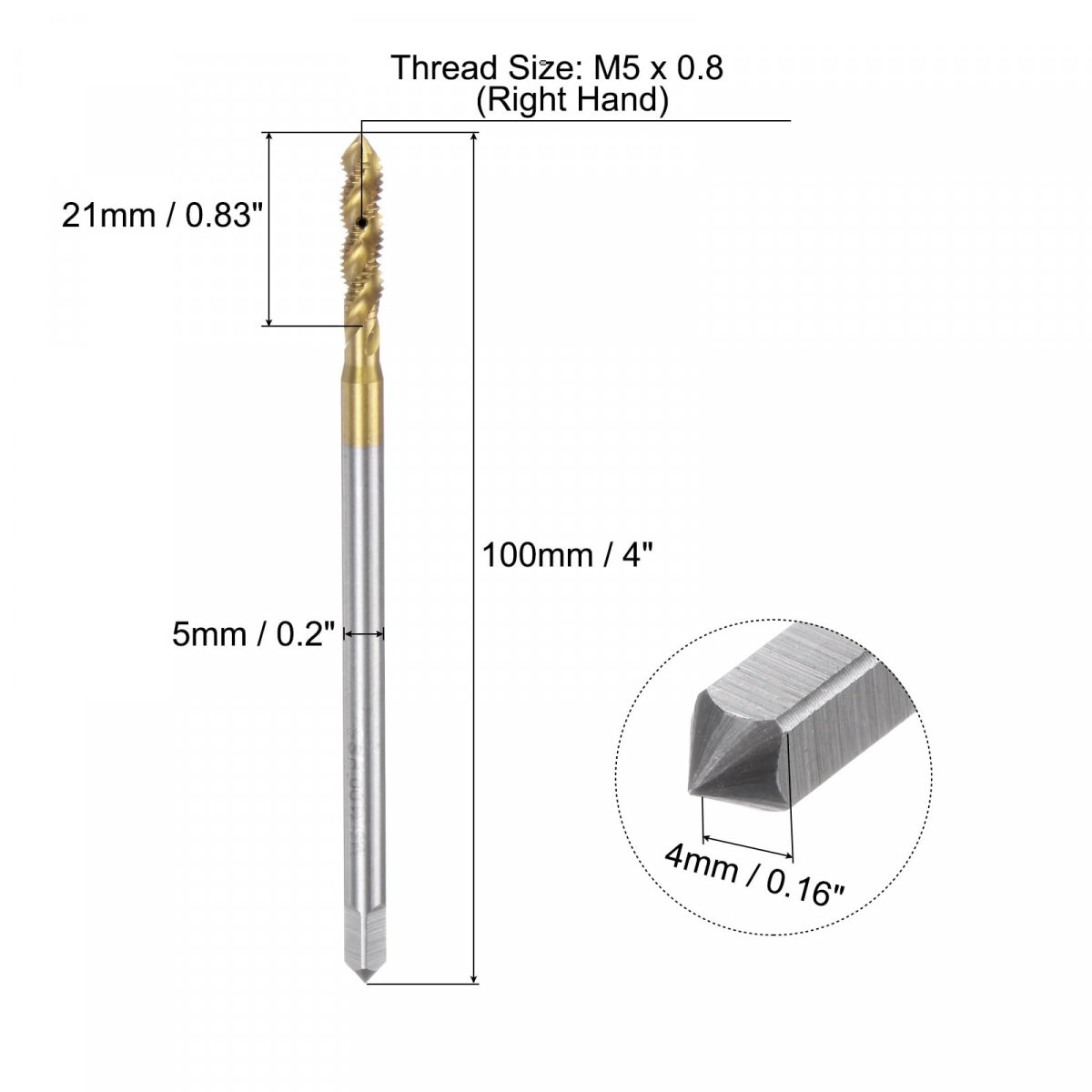

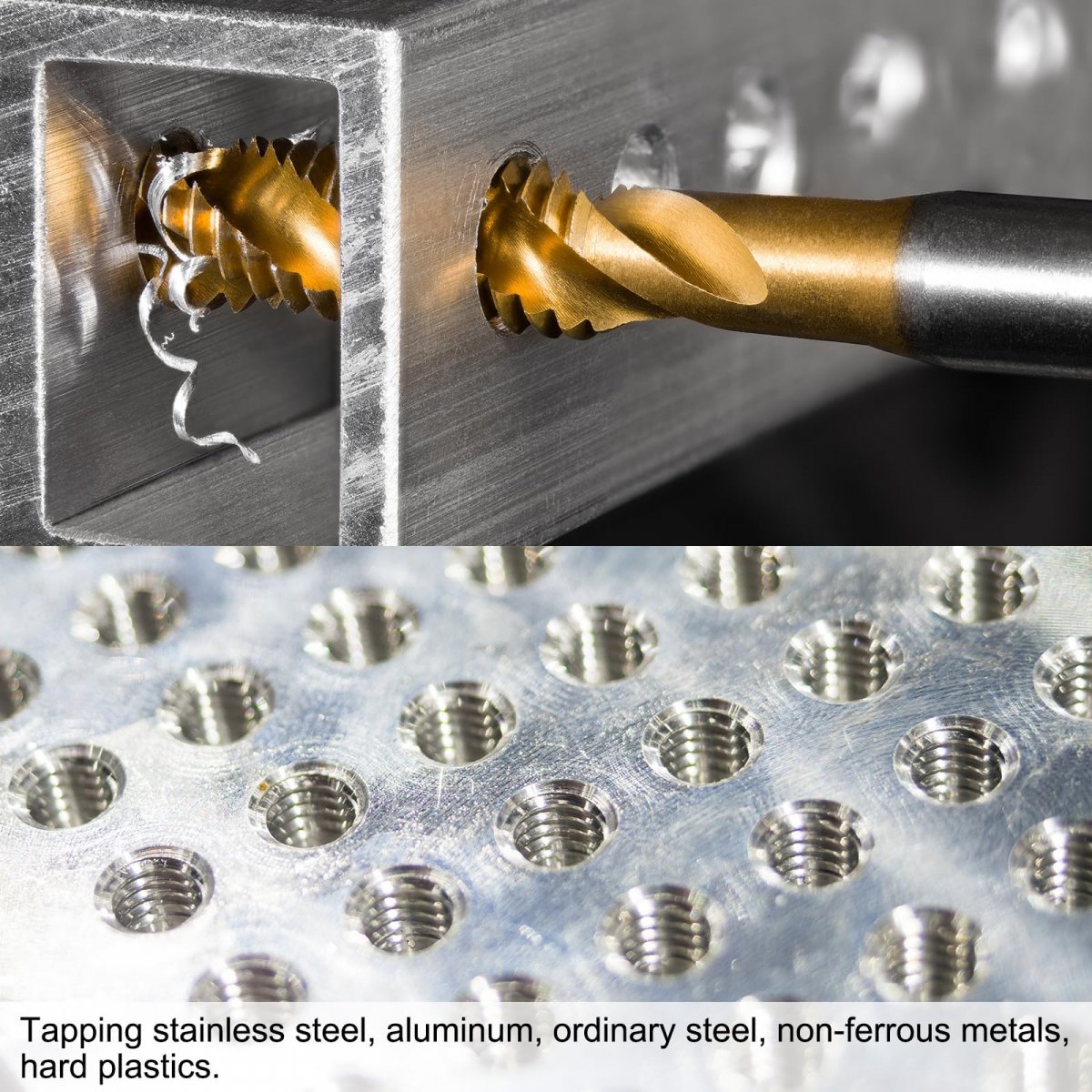

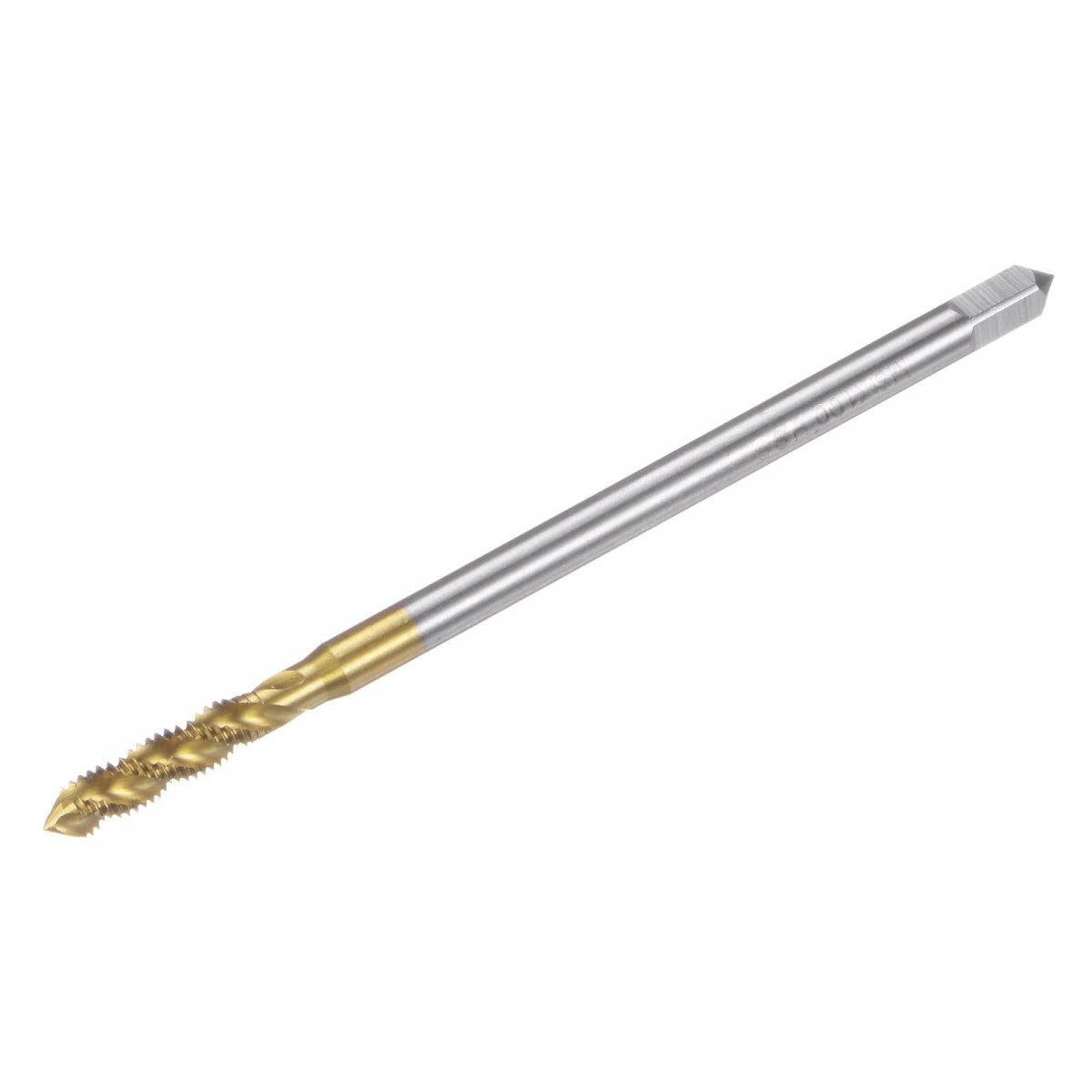

Metric Spiral Flute Tap: Thread size: M5 x 0.8 (right hand), accuracy: H2; total length: 100mm / 4" (extra long); thread length: 21mm / 0.83"; square shank width: 4mm / 0.16". Spiral flutes are fully ground to provide upward chip removal, with clear threads and sharp cutting edges.. 6542 (M2) High Speed Steel: Run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. Titanium coating provides excellent corrosion resistance, and reduces the coefficient of friction for smoother tapping.. Applications: Thread taps are great for processing blind holes and sticky materials. Used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the screw tap help to remove chips and debris from the hole.. Machine Tap: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap chucks with overload protection. Not recommended for hand use and electric drill tapping.. Tips: Tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap. Control the speed according to the material hardness. The higher the hardness, the slower the speed..
