Description:

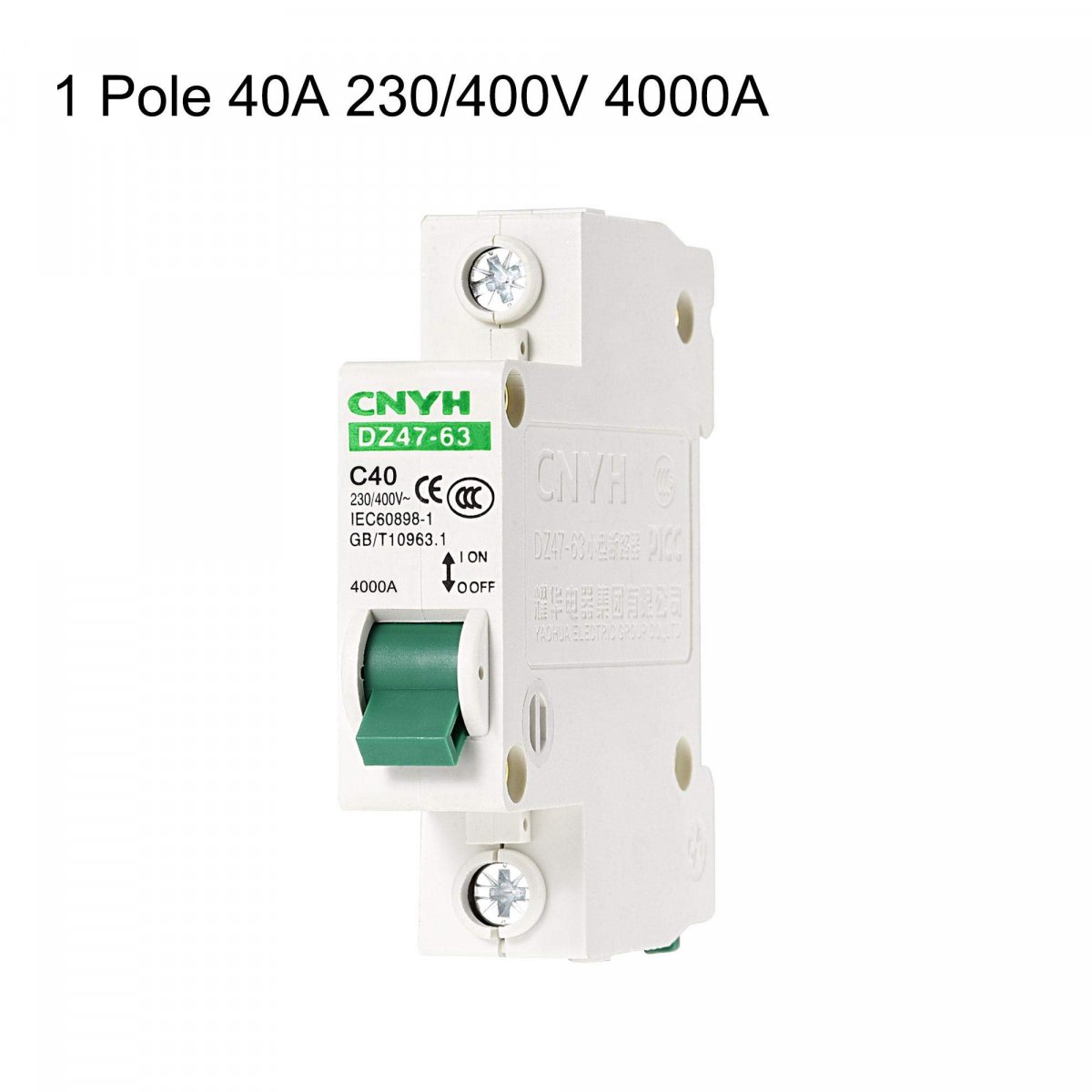

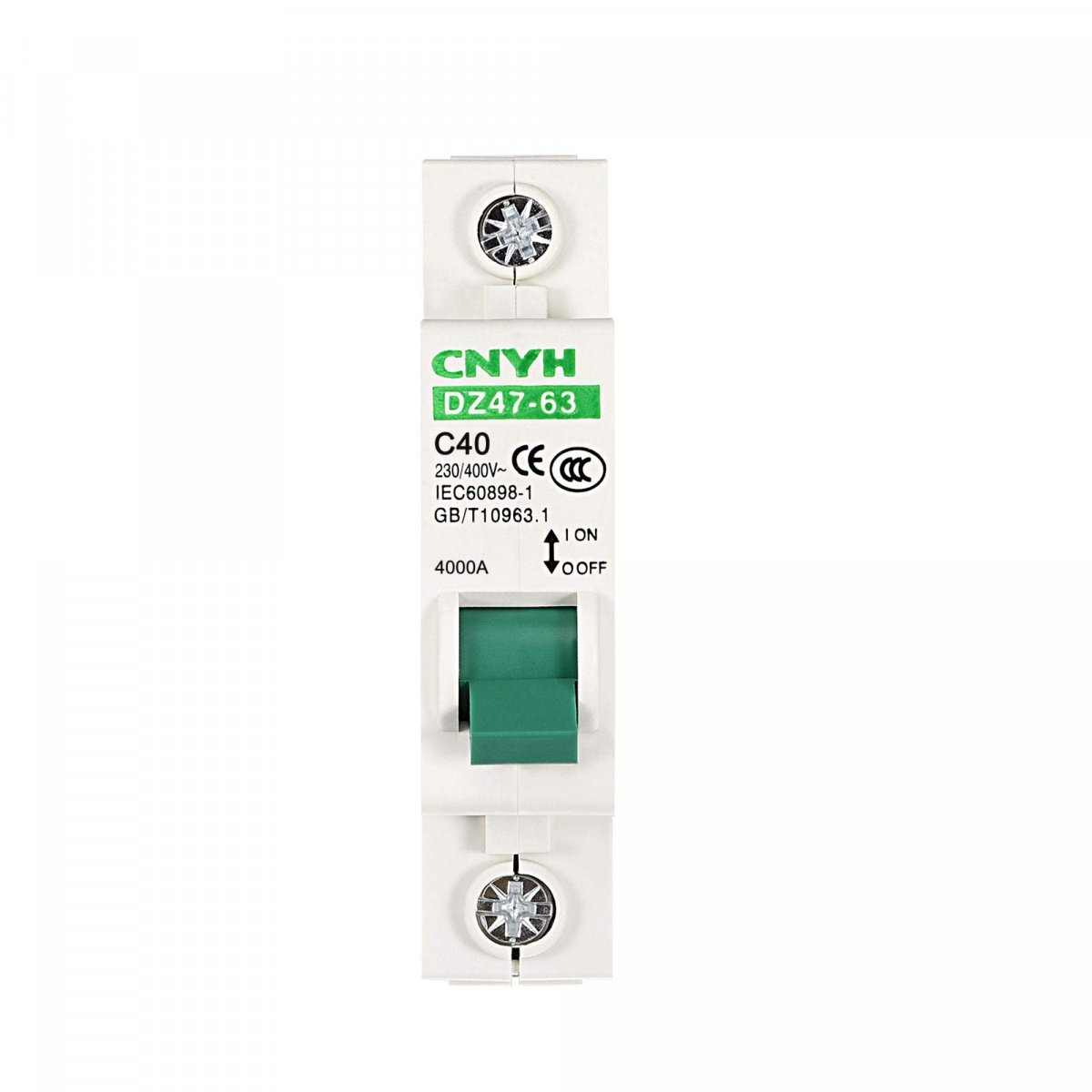

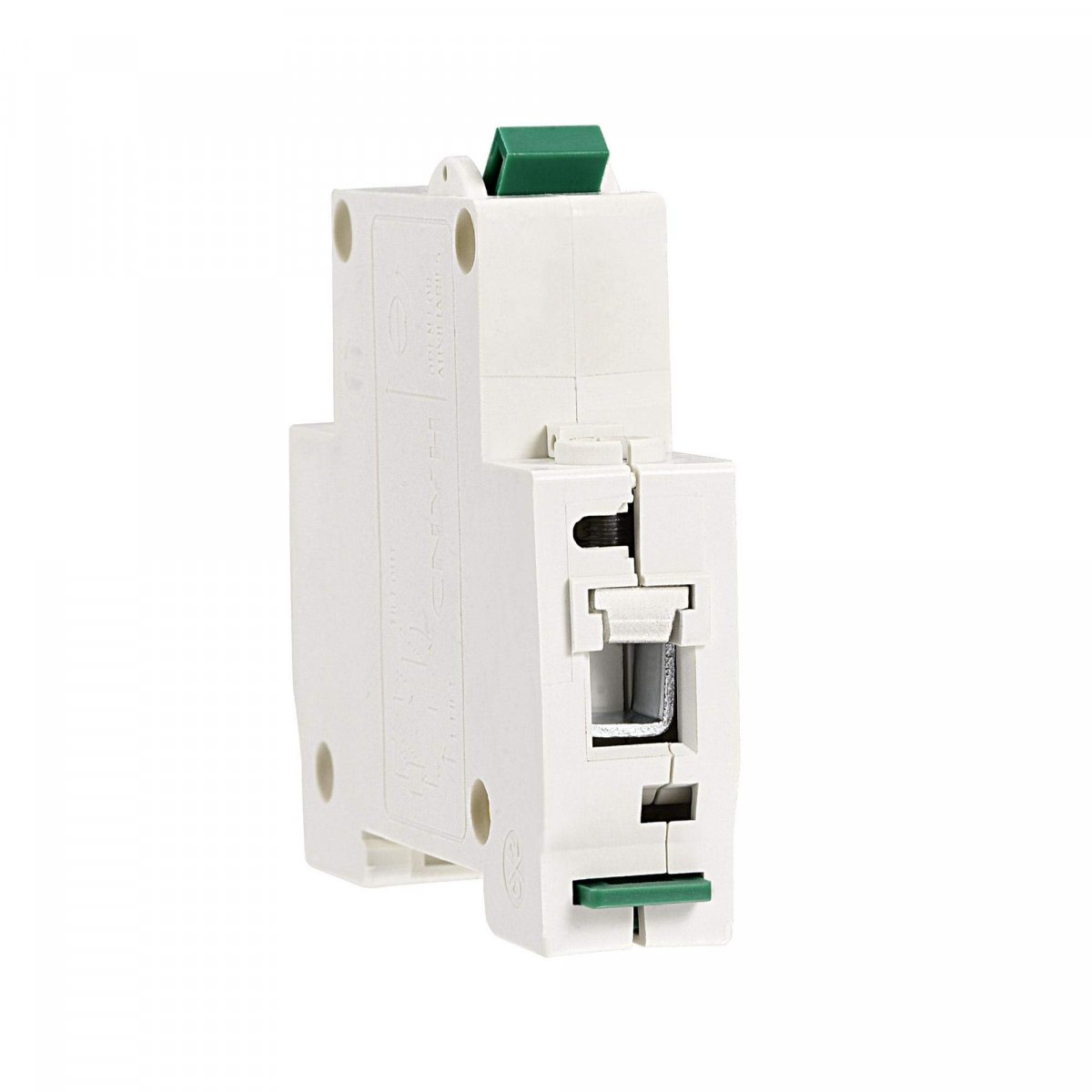

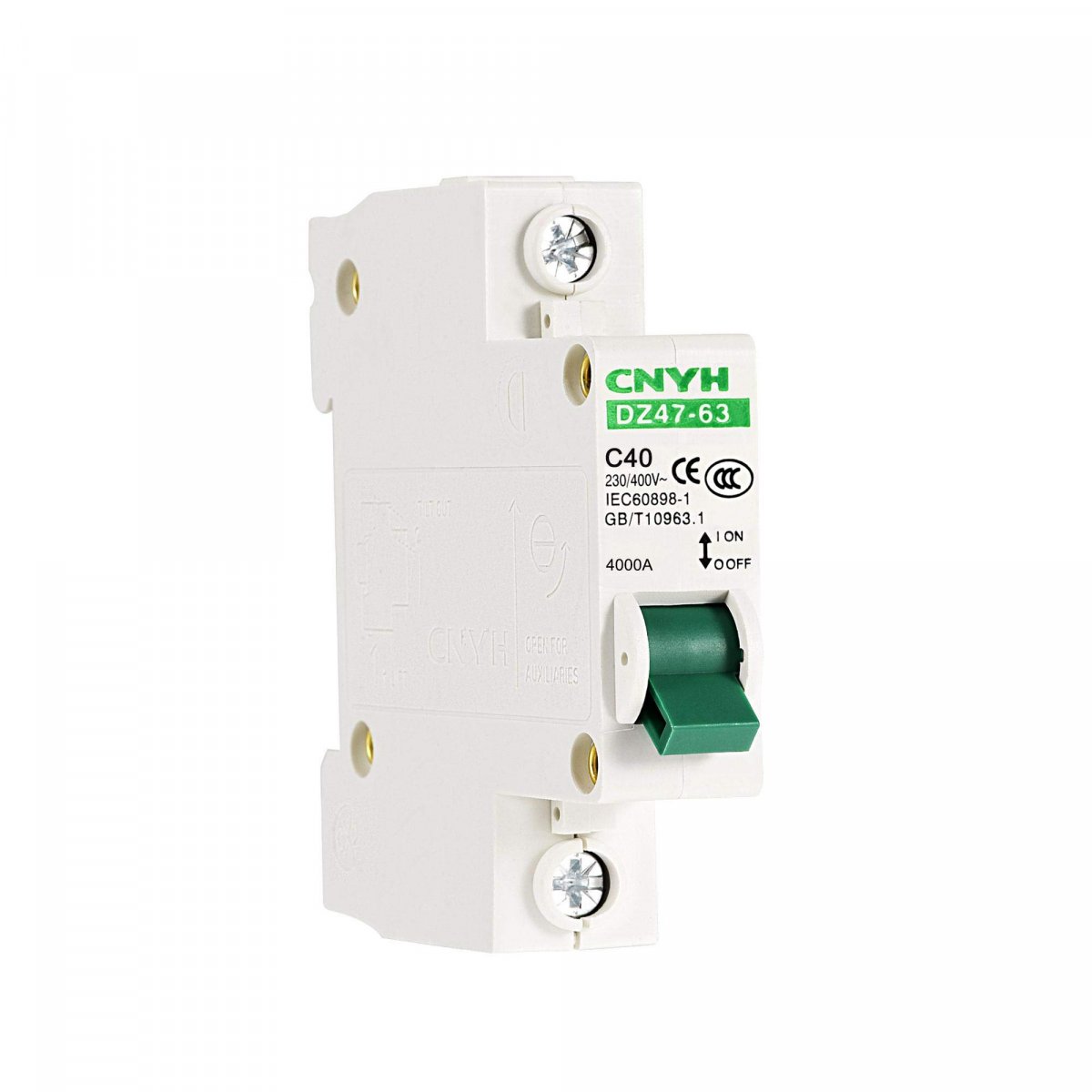

Rated Circuit Breaking Capacity: 4000A; Rated Voltage: 230/400V; Mechanical Life: 20,000 times; Electrical Life: 8,000 times.. Model: DZ47-63 ; Tripping Curve: C; Rated Current: 40A ; Number of Pole: 1P, Overall Size: 77 x 18 x 70mm/3.03'' x 0.7'' x 2.75''(L x W x H).. This miniature circuit breaker used to protect an electrical system from break caused by excess current resulting from an overload or short circuit.. Fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as an on-off switch for load circuits.. The Modular structure can be easily installed on the DIN standard guide rail in the distribution box, bistable locking clip, the installation more convenient. In accordance with industrial standards: IEC 60898-1, GB/T10963.1..
