Description:

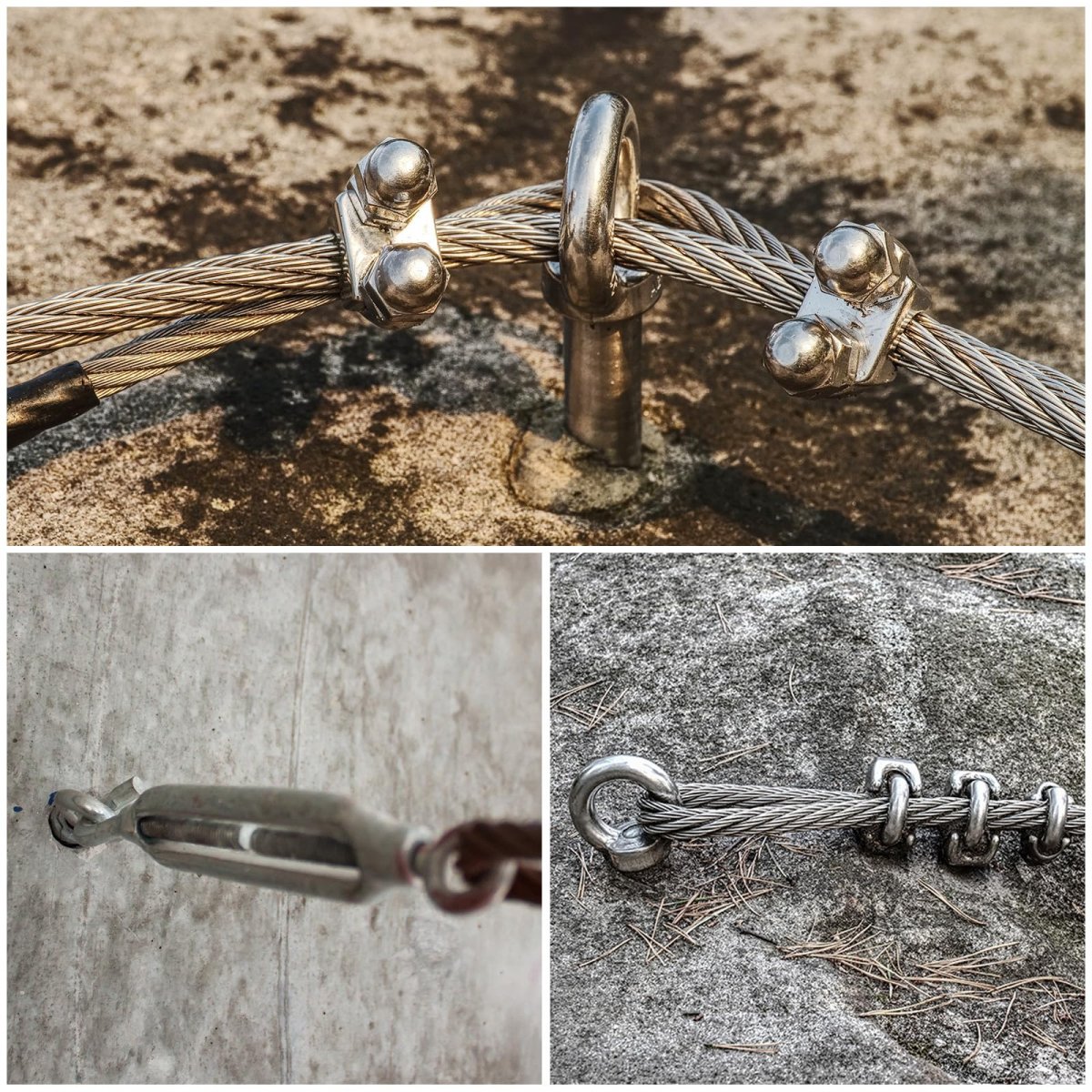

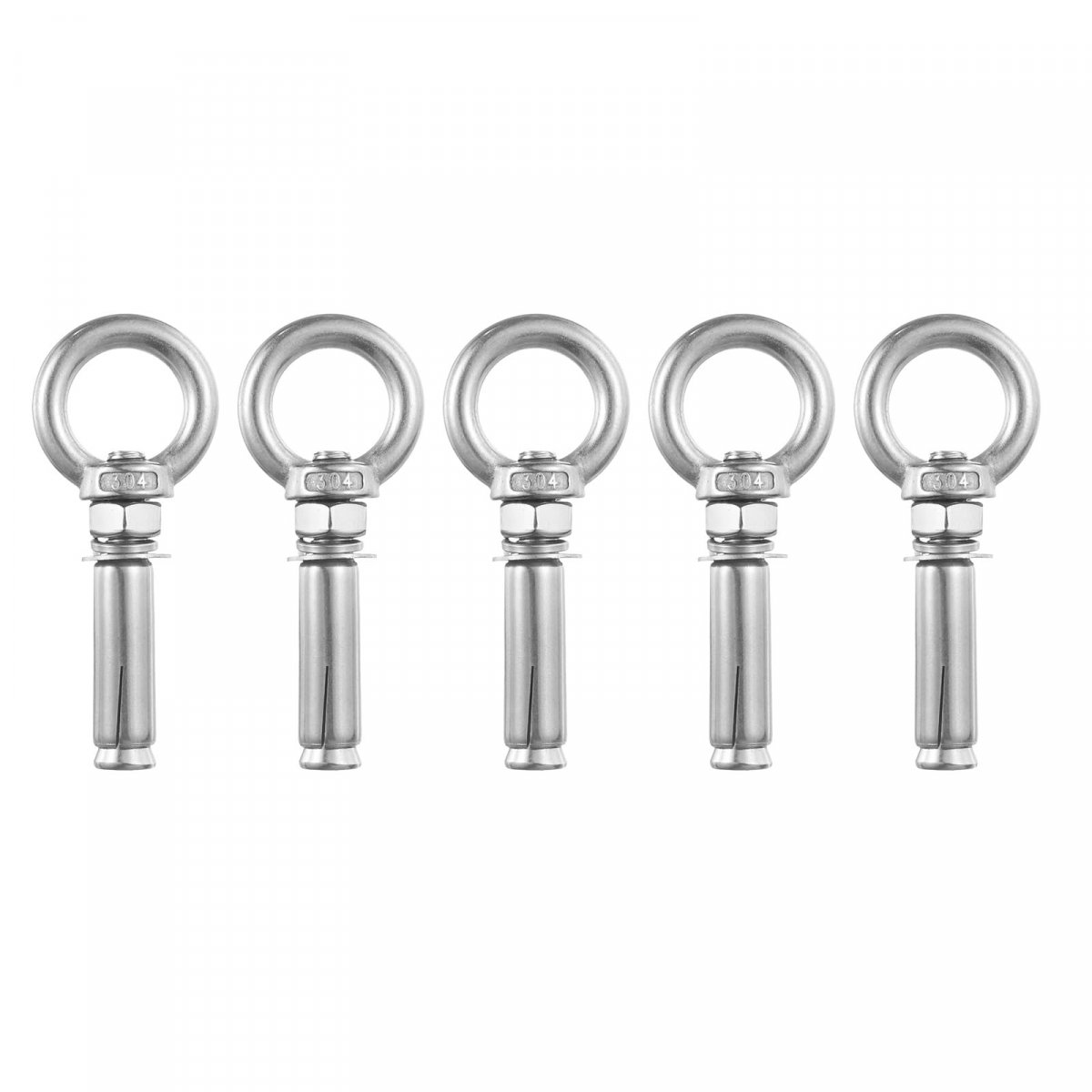

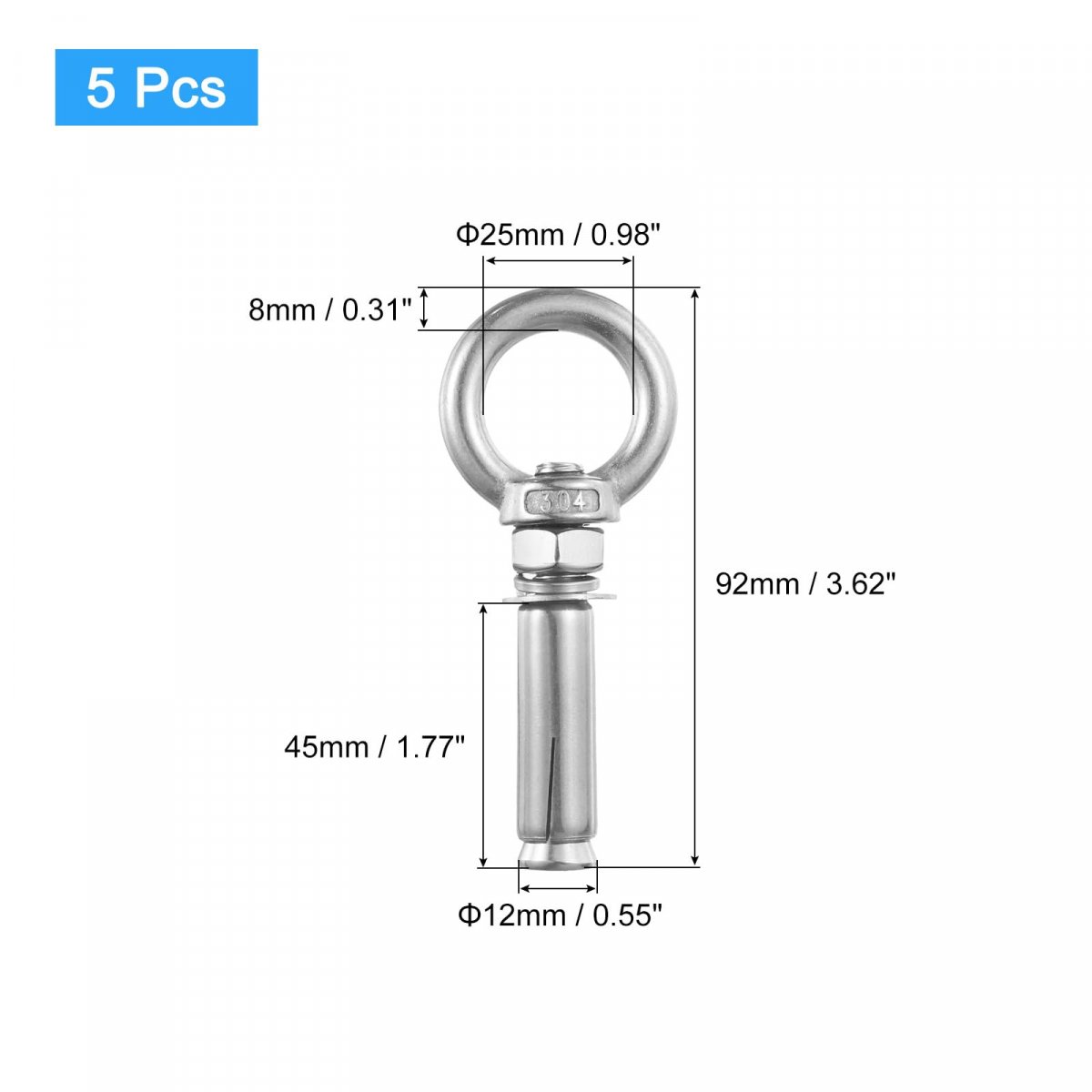

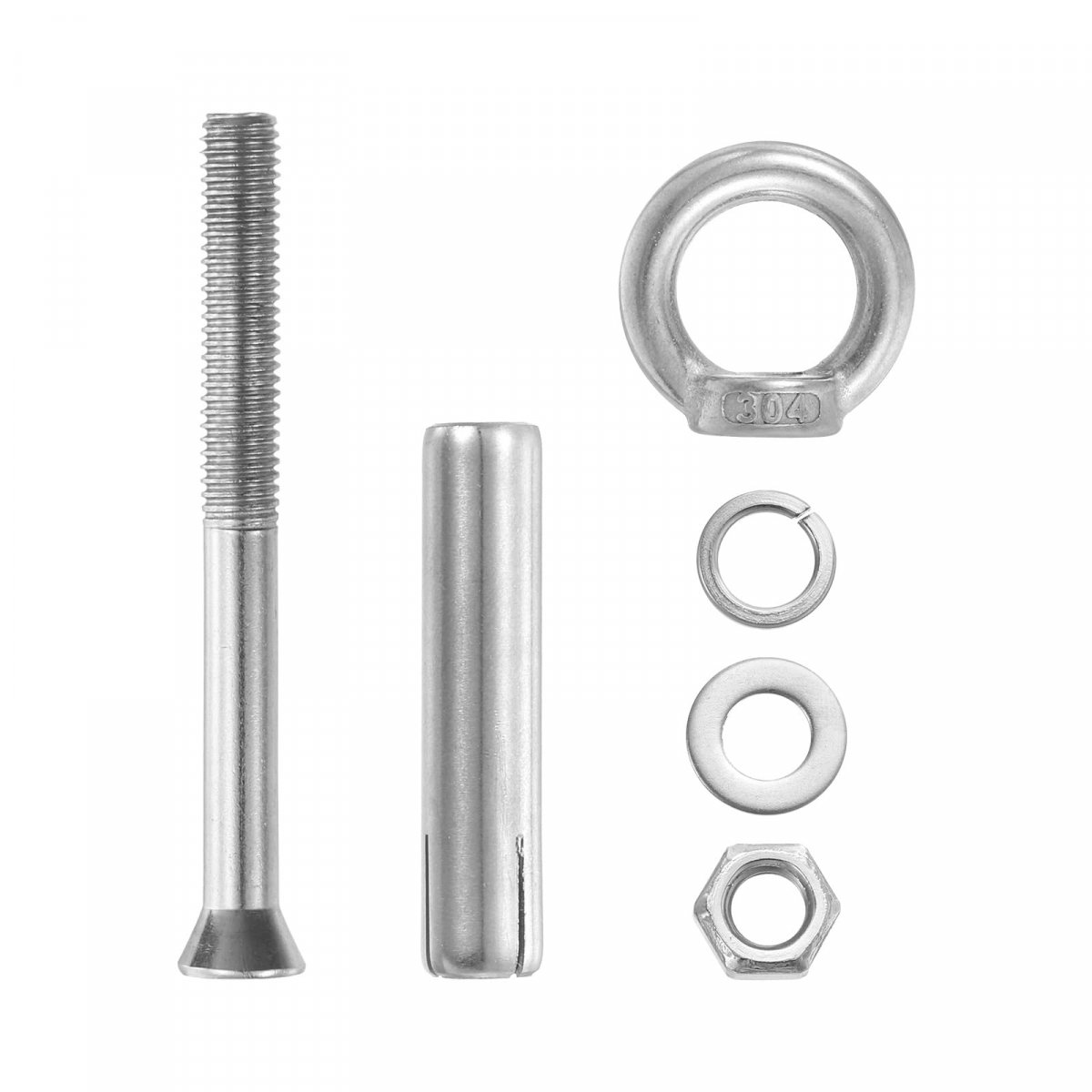

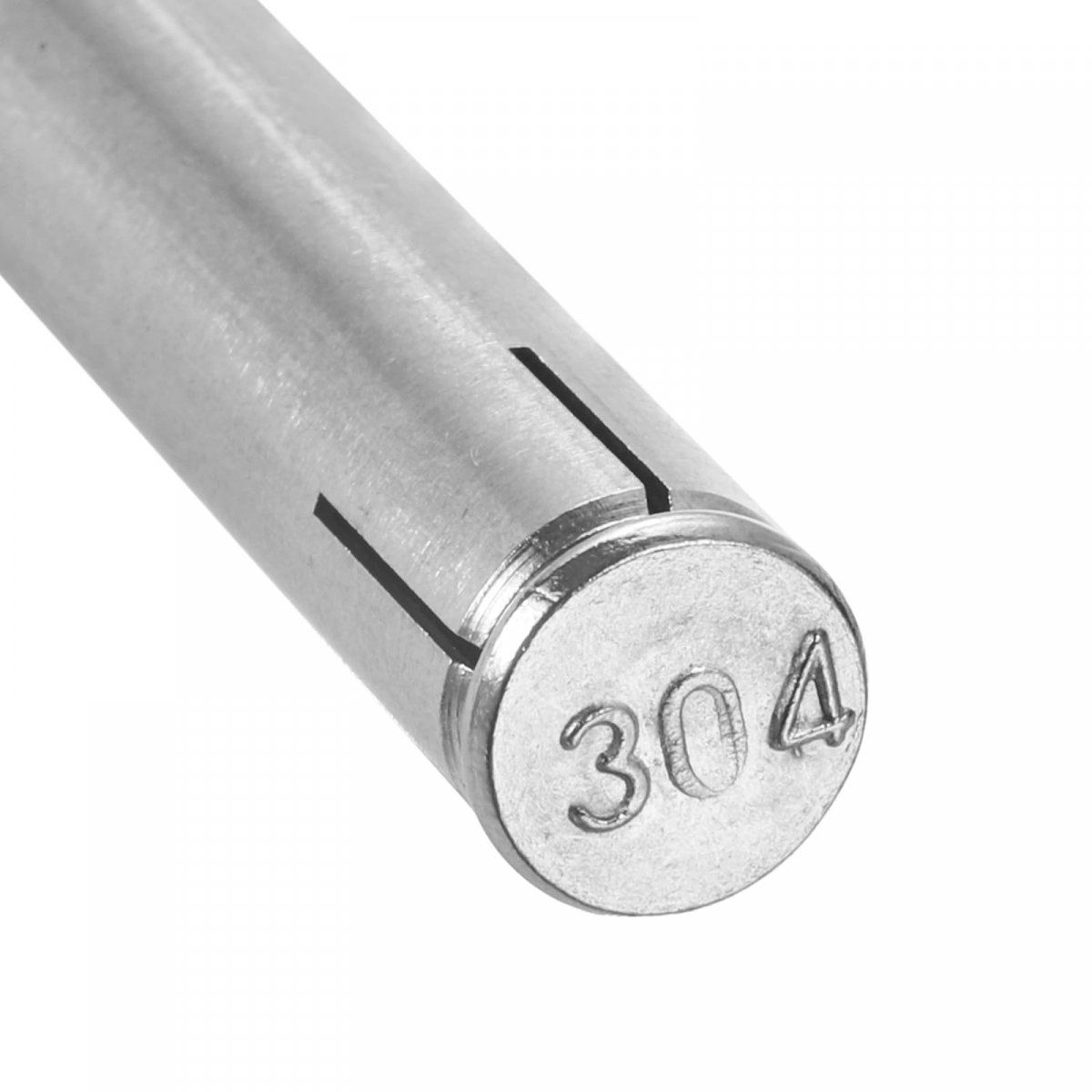

Thread Size: M10 x 60mm / M10 x 2.36"(D*L); Total Size: 92mm / 3.62"; Ring Inner Diameter: 25mm / 0.98"; Ring Thickness: 8mm / 0.31"; Punch Diameter: 13.5mm / 0.53"; Entry to the Wall Depth: 45mm / 1.77"; Package Content: 5pcs x Ring Lifting Expansion Eyebolt. Material: Shoulder eye bolt made of 304 stainless steel, with good rust resistance and durability, solid and reliable use, not easy to break or deformation, can serve you for a long time.. Design: A shoulder bolt with a wide shoulder, long screw, and hex nut design, can withstand greater load, shoulder allows more movement and adjustment than the standard eye bolt, more stable.. Usage: Determine the location and drill a hole, clean the dust in the hole, insert the bolt and tighten the nut, the expansion bolt will automatically open, and ensure that the ring nut is tightened then finish installation.. Application: The ring lifting expansion eyebolt is widely used in rigging, lifting, ships, agricultural applications, tree house construction, ceiling installation and so on..
