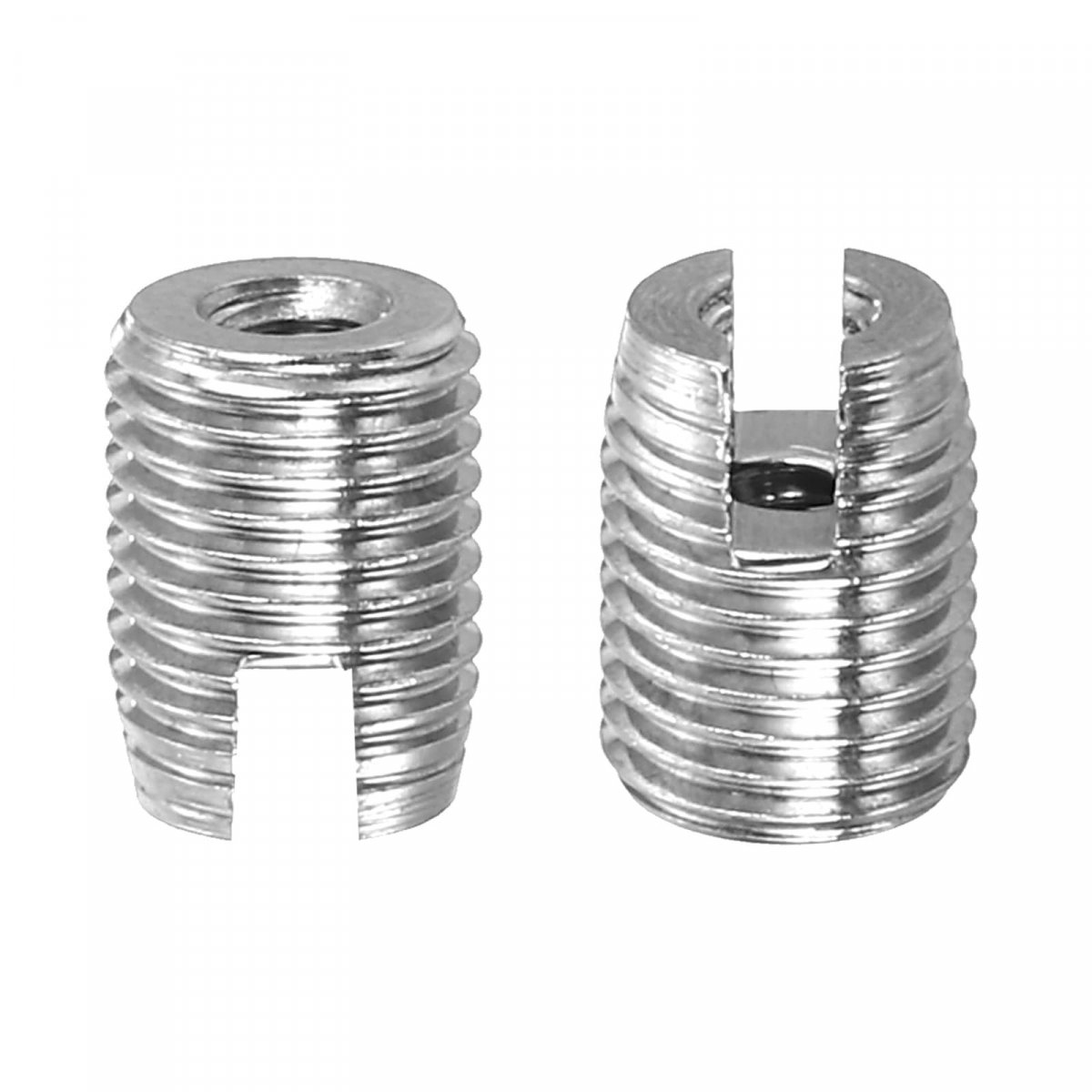

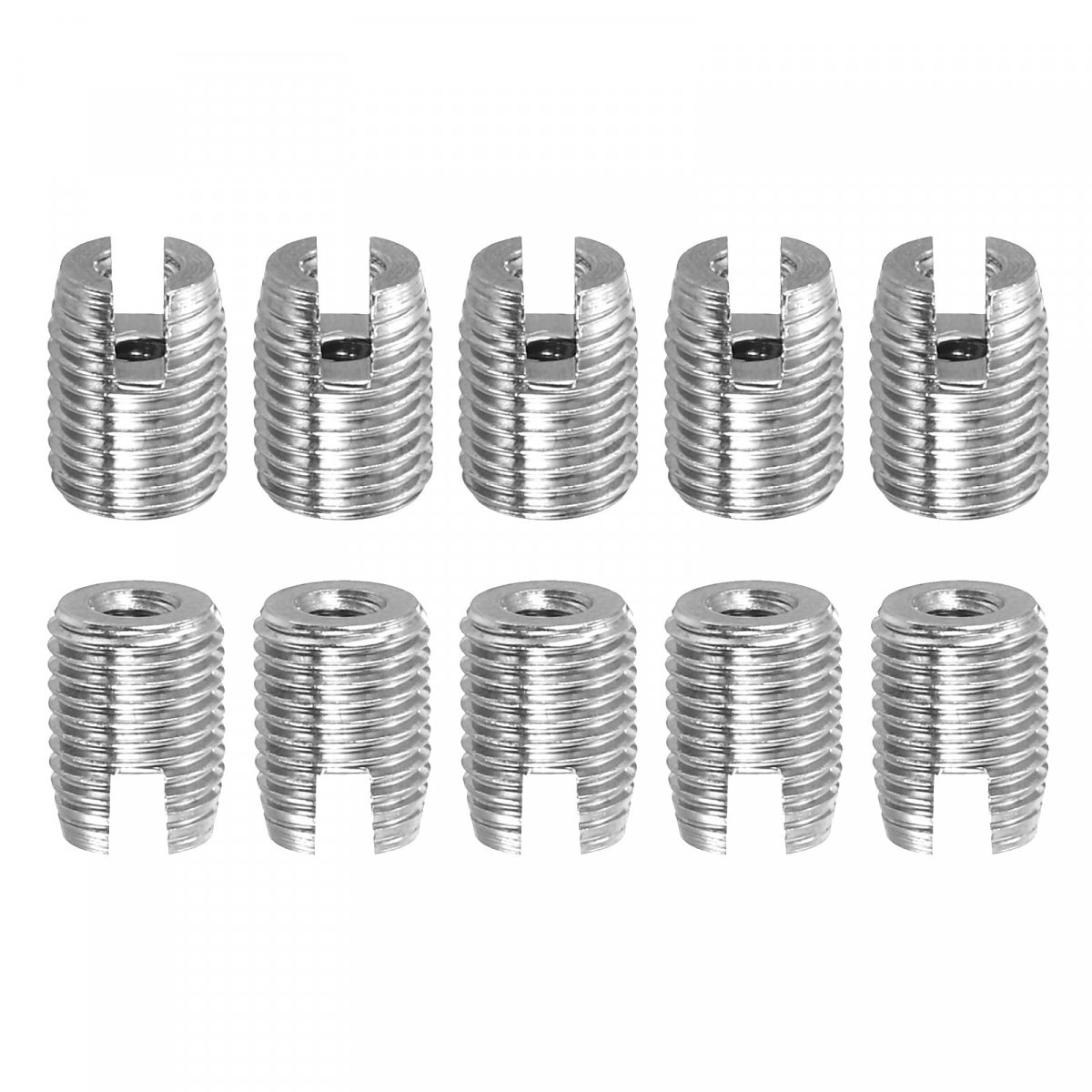

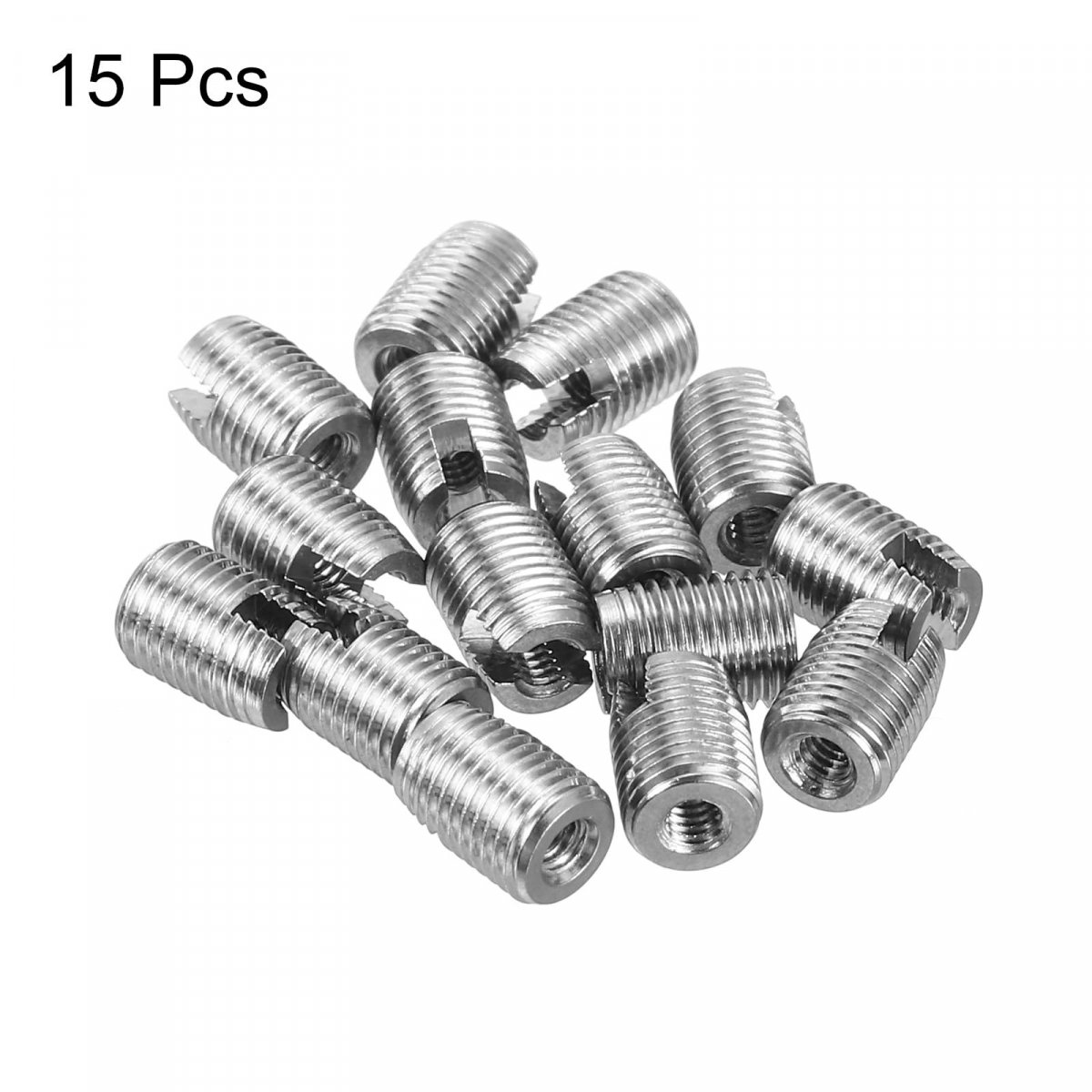

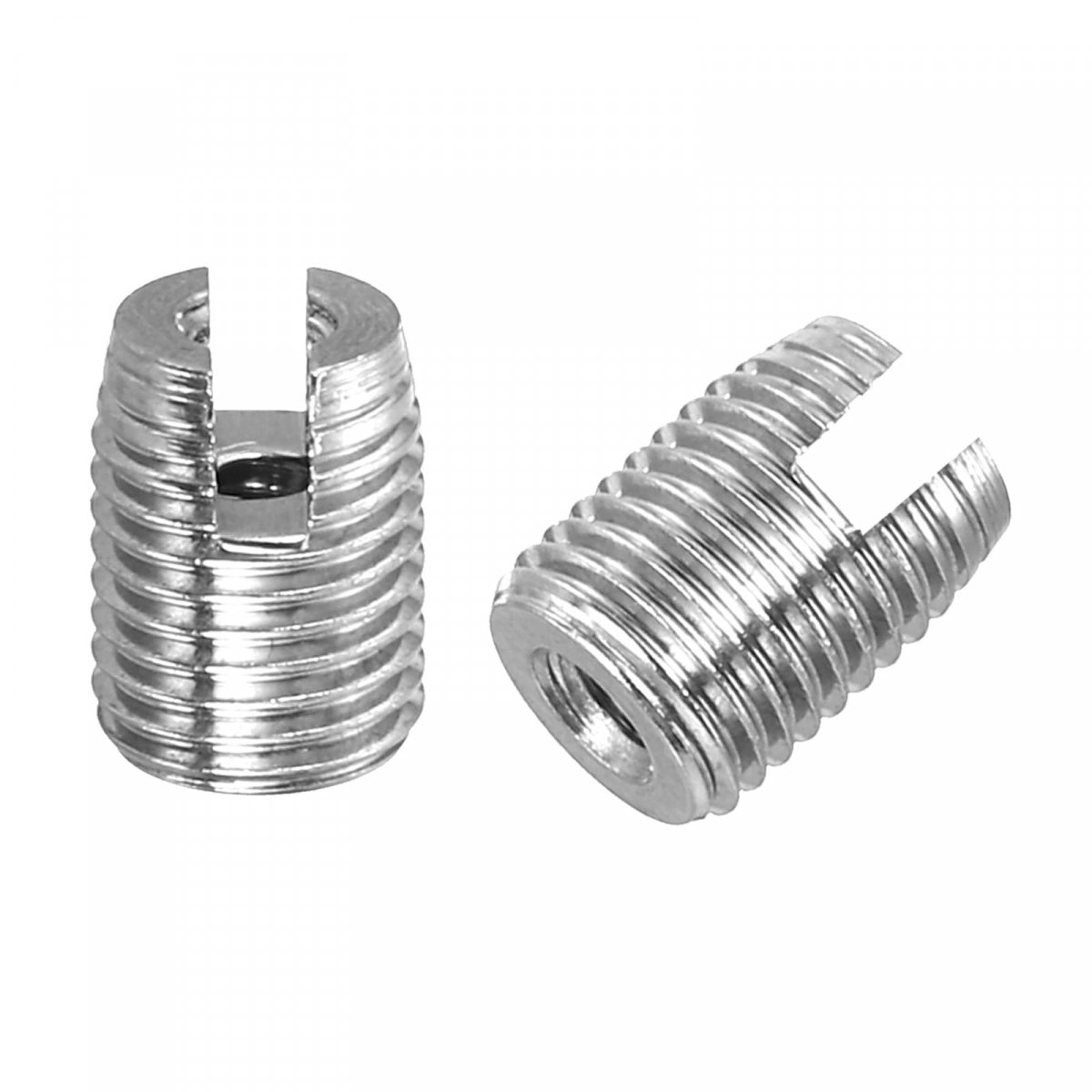

Inner Thread Size: M8x1.25((Dia.x Pitch); Outer Thread Size:M12x1.5(Dia.x Pitch); Length: 15mm/0.59"; Min. Drilling Depth: 18mm/0.71"; Refer to Drilling Diameter: 10.6-10.8mm(Plastic), 11.0-11.2mm(Aluminum Alloy), 11.2-11.4mm(Cast Iron); Package Content: 15pcs x Threaded Inserts. Material: 303 stainless steel material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.. Advantages: With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.. Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.. Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries..
