Description:

The ROP Shop replacement Water Pump Impeller Kit for Evinrude 90 HP E90DGXAFG, E90DPXAFG Outboard Engine.

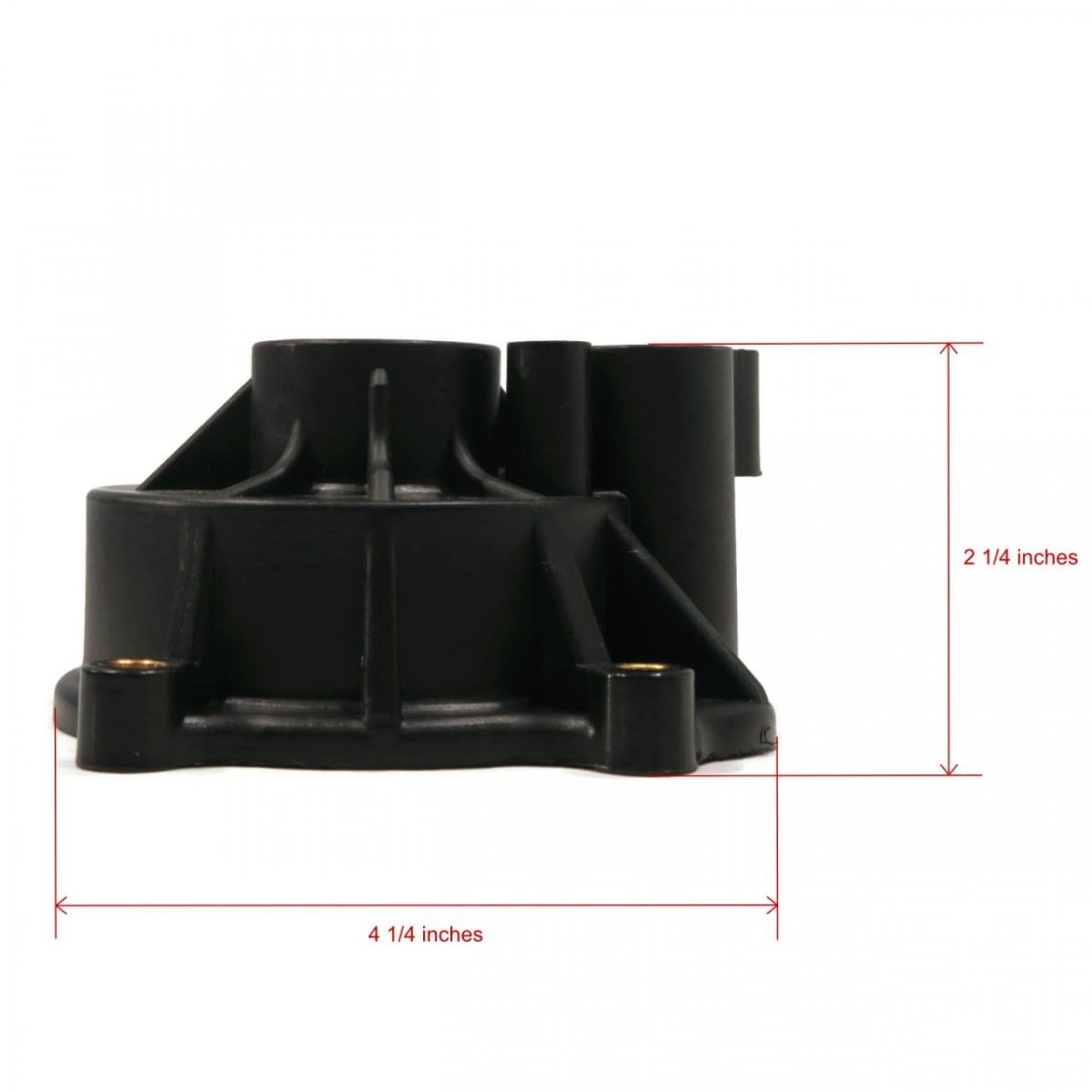

Specs - Impeller ID: 21.31mm. Impeller OD: 89mm. Impeller Width: 19mm. 6 Blades. Refer to images 2 & 3 for more information.

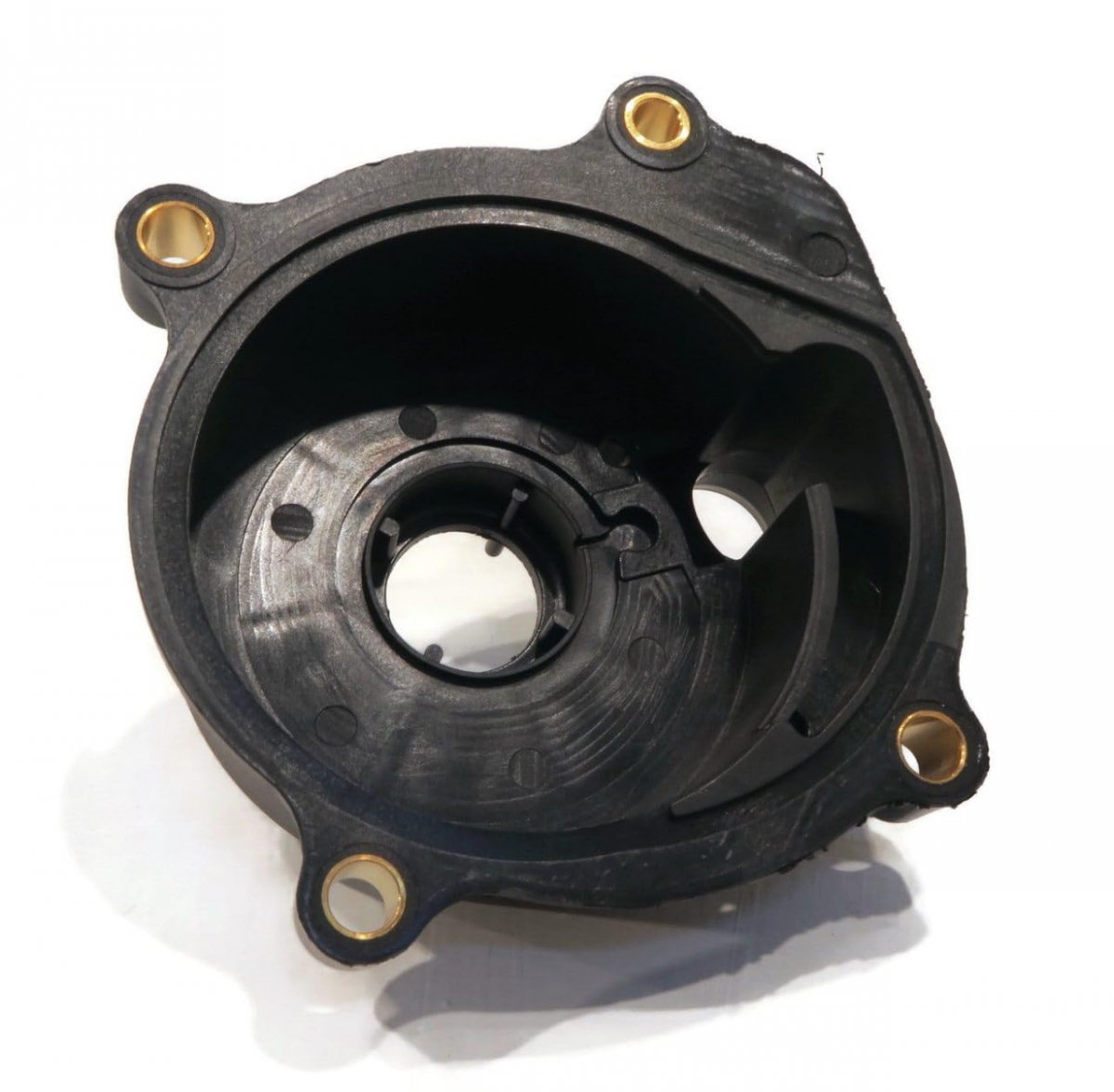

Includes - (1) Impeller, (1) Housing, (1) Housing Cover, (1) Housing Cup, (1) Wear Plate, (1) Plate Gasket, (1) Plate Seal, (3) O-Rings, (2) Sleeves, (4) Grommets, (1) Key Wedge & (6) Bolts/Screws; comes as shown in the first image.
Fits/For 1993 & Up Johnson, Evinrude V4 90-140 HP, V6 150-225 HP, V8 250-300 HP outboard water pumps with housings that DO NOT contain a bleed/relief hole.
