Description:

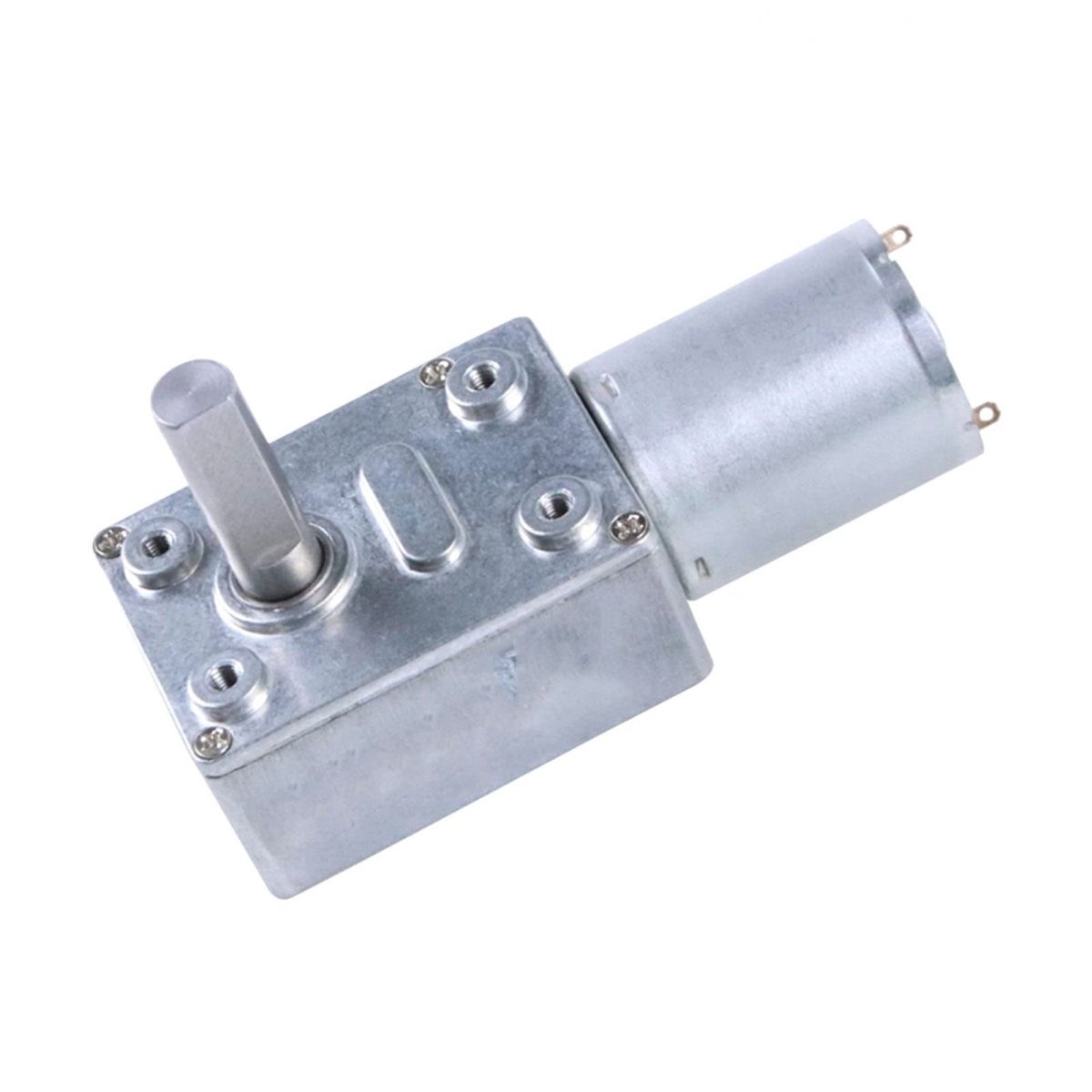

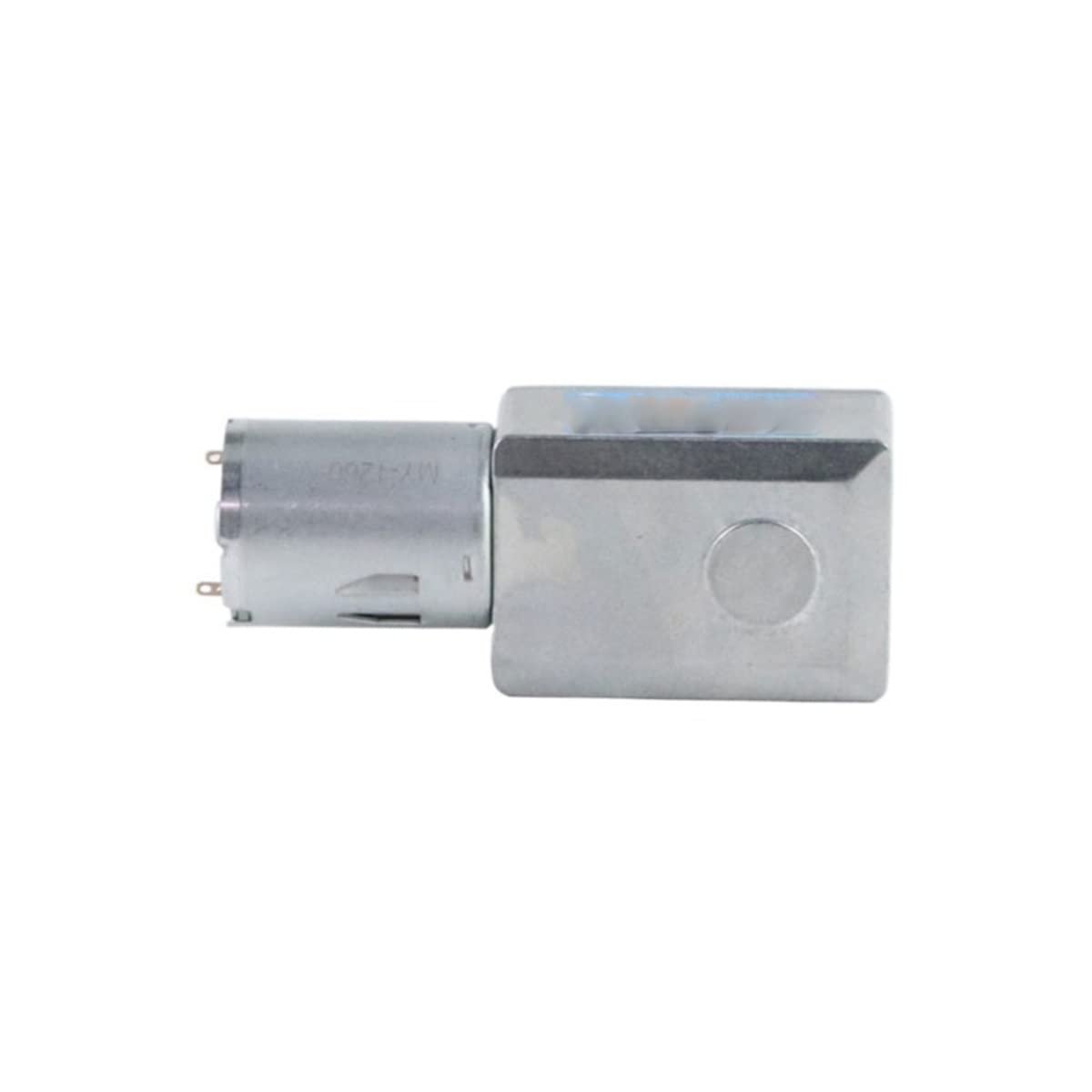

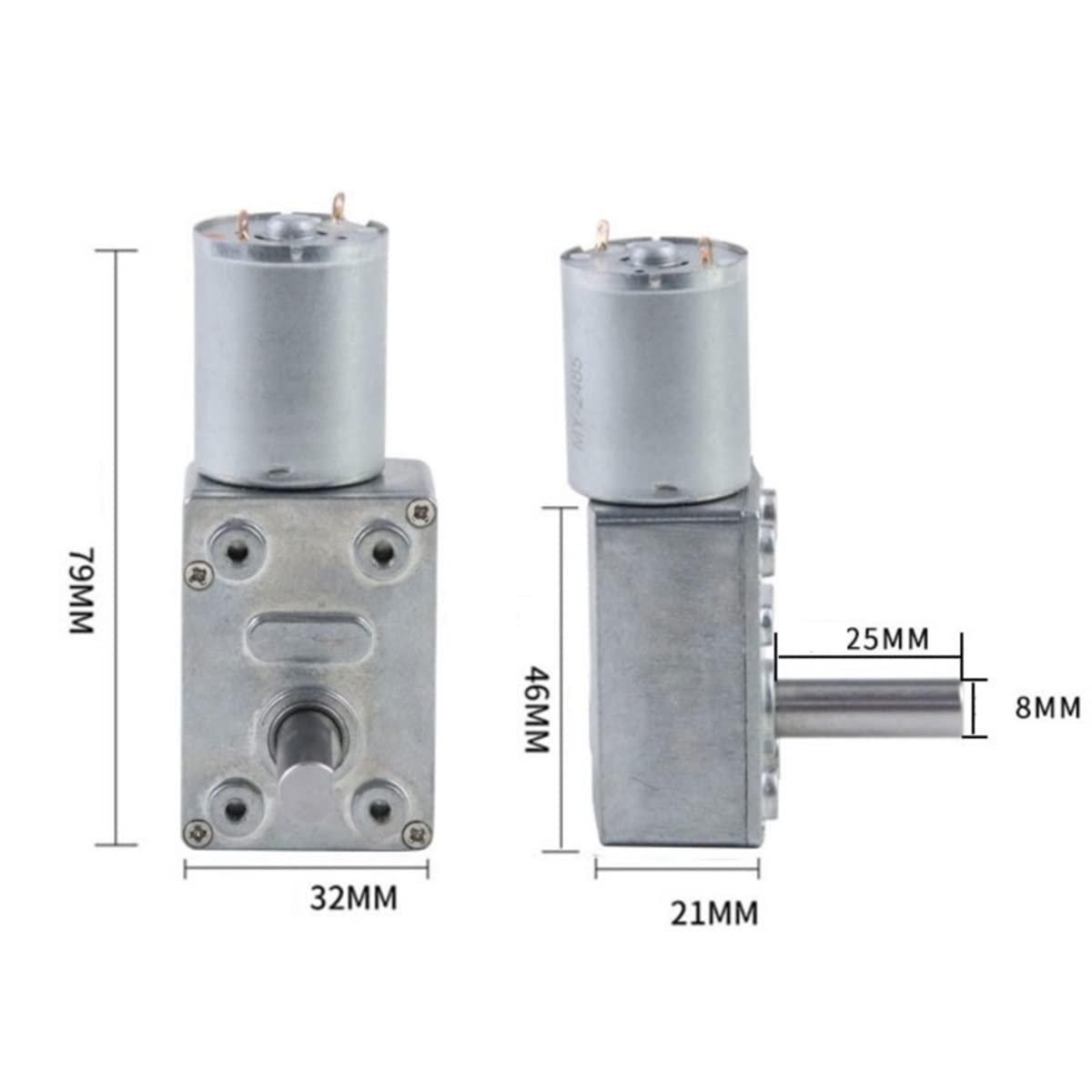

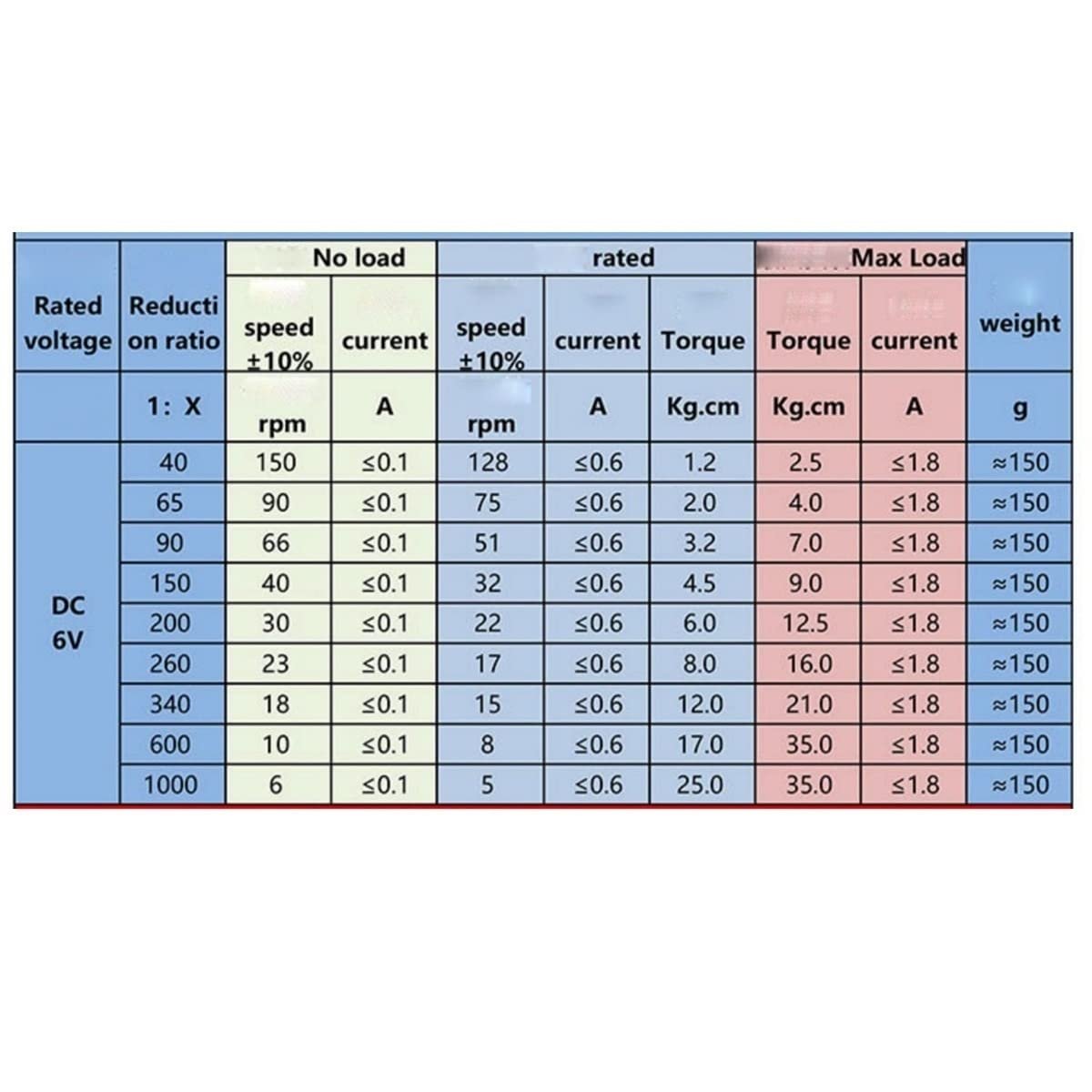

Rated voltage: DC6/12/24V; No-load speed: 150rpm/90rpm/66rpm/40rpm/30rpm/23rpm/18rpm/10rpm/6rpm; Rated torque: 1.2/2.0/3.2/4.5/6/8/12/17/25kg.cm; Rated Current: 0.6/0.5/0.2A. Gear Motor Body Dimensions: 79 x 32 x 21(L*W*H); Out Shaft Dimensions: 25*8. [Powerful Functions ]: High-torque geared DC motors with micro worm gears can change the rotation of the motor by using different wiring methods. The output shaft of the reducer and the motor shaft are arranged vertically, and the total output of the motor is shorter, which is suitable for most installation dimensions.. Adopting high hardness steel, good toughness, impact resistance, bearing quality and turbo worm gear motor have improved service life, extremely durable.. Applications include labeling machines, remote control curtains, automatic voltage regulators, grills, ovens, washing machines, garbage disposals, household appliances, coin-operated machines, bill identifiers, automatic actuators, coffee machines, towel machines, printing machines and stage lighting..
