Description:

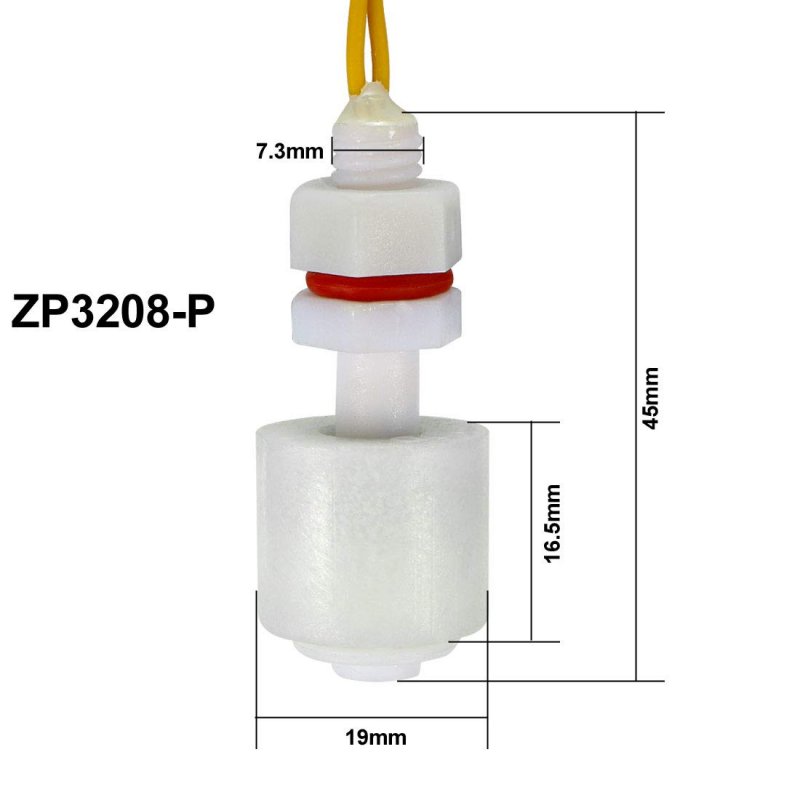

Product Name : Water Level Sensor; Model No. : ZP3208-P; Contacts : NO+NC; Max Contact Rating : Max Contact Rating; 10W : 10W. Max Switching Voltage : 100V DC; Max Switching Current : 0.5A; Max Breakdown Voltage : 220V DC; Max Carry Current : 1.0A; Max Contact Resistance : 100m. Temperature Rating : -10 - +60C / 85C; Float Ball Material : PP; Float Body Material : PP; Float Ball Size(Approx.) : 16.5 x 19mm / 0.65" x 0.748"(L*D). Thread Dia(Approx.) : 7.3mm / 0.287"; Hex Nut Size(Approx.) : 12.4mm / 0.488"; Bottom Clip Dia(Approx.) : 14.4mm / 0.567; Body Total Length : 45mm / 1.8". Cable Length : 37cm / 14.6"; Color : White; Net Weight : 9g; Package Content : 1 x Water Level Sensor.
