Description:

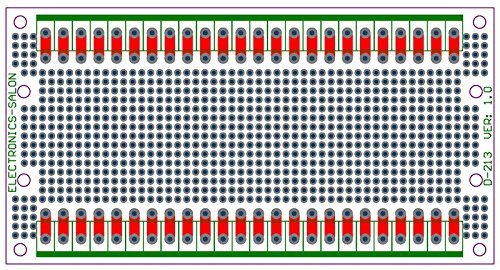

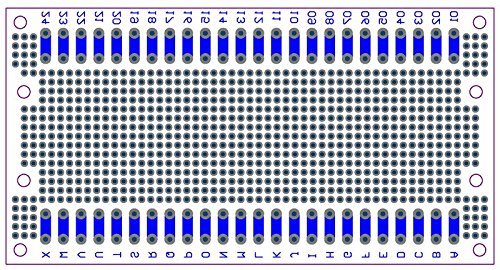

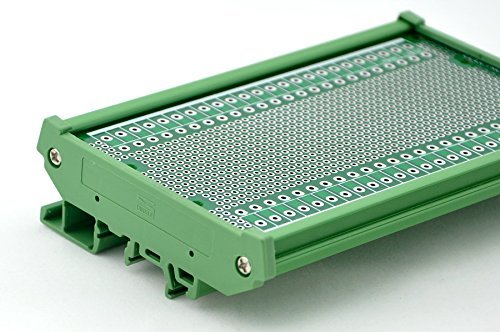

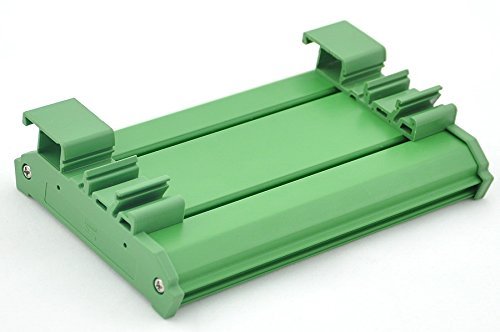

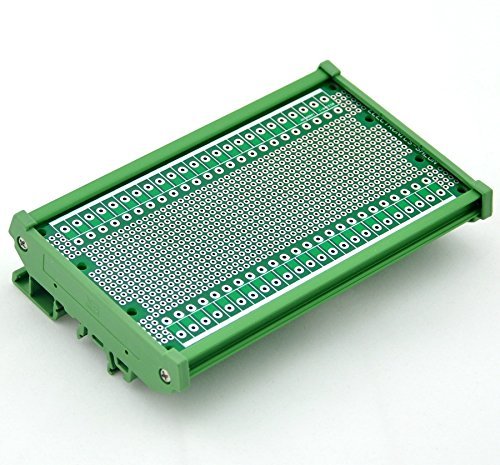

DIN Rail Mounting Carrier Housing with Prototype Board, for DIN Rail Projects DIY. Carrier Housing, for 35mm, 32mm or 15mm DIN rail. Size: L139. 5mm x W87mm x H30mm / 5. 5" x 3. 42" x 1. 18" PCB Dimension: 137. 4 x 72mm / 5. 41" x 2. 83" PCB Thickness : 1. 6mm. Material : FR-4 (glass fiber). All holes are plated through. Both sides are identical. PCB AX and 0124 connectors position pitch 5. 0mm / 0. 197", hole diameter 1. 3mm. Other pads grid (pitch) 2. 54mm / 0. 1", hole diameter 0. 9mm. Features: DIN Rail Mounting Carrier Housing with Prototype Board, for DIN Rail Projects DIY. Carrier Housing, for 35mm, 32mm or 15mm DIN rail. Size: L139. 5mm x W87mm x H30mm / 5. 5" x 3. 42" x 1. 18" PCB Dimension: 137. 4 x 72mm / 5. 41" x 2. 83" PCB Thickness : 1. 6mm. Material : FR-4 (glass fiber).
