Description:

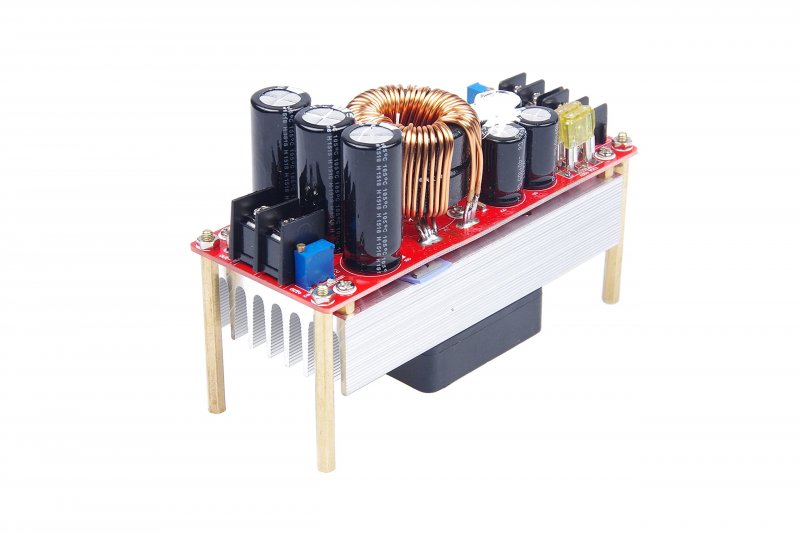

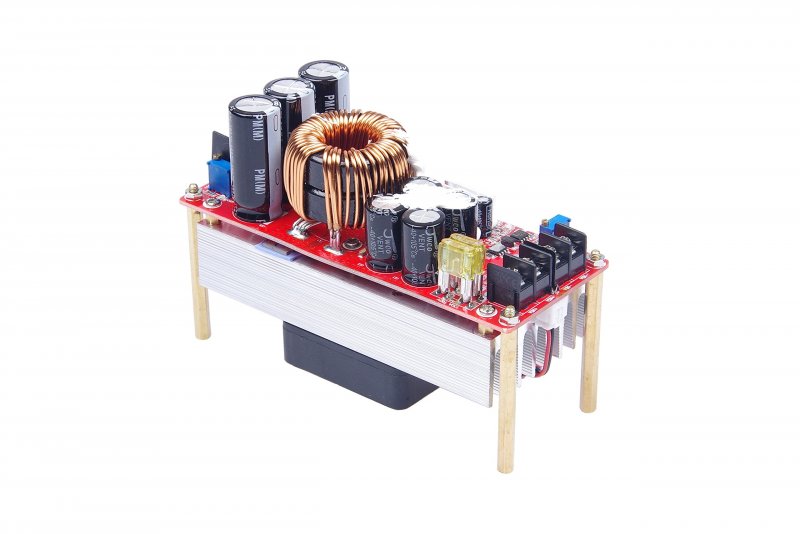

The 1500W 30A DC Boost Converter is a high power step up power supply module designed to increase voltage for high power LED motors and electronic devices. It provides a versatile solution for DIY power supplies and solar panel regulation with high conversion efficiency.

• Input Voltage: DC 10V to 60V
• Output Voltage: 12V to 90V continuously adjustable
• Maximum Input Current: 30A for 10 to 30V input and 25A for 31 to 60V input
• Constant Current Range: 0.8 to 20A
• Conversion Efficiency: 92 percent to 97 percent
• Operating Frequency: 150 KHz
• Temperature Range: negative 40 to positive 85 degrees
• Quiescent Current: 15 mA
• Protection Features: Low battery protection, input reverse polarity protection, and short circuit protection
• Build Quality: Double iron silicon aluminum 4 1.2MM pure copper wire and low resistance power MOS

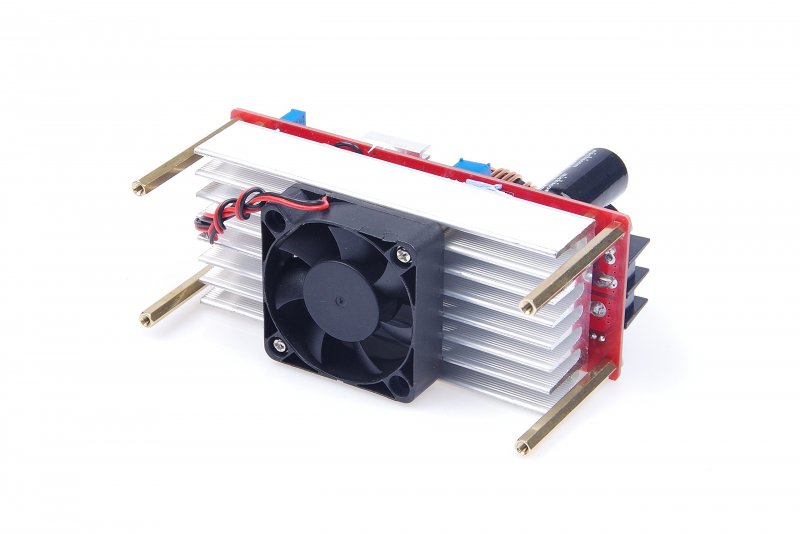

• Cooling: Thickened radiator with intelligent temperature control cooling fan
• Module Dimensions: 130 x 52 x 85 mm
• Installation: 4 x 3 mm screw holes
• Applications: DIY power supplies, electronic device power, digital product supply, mobile notebook power, solar panel regulators, and lithium battery charging
