Description:

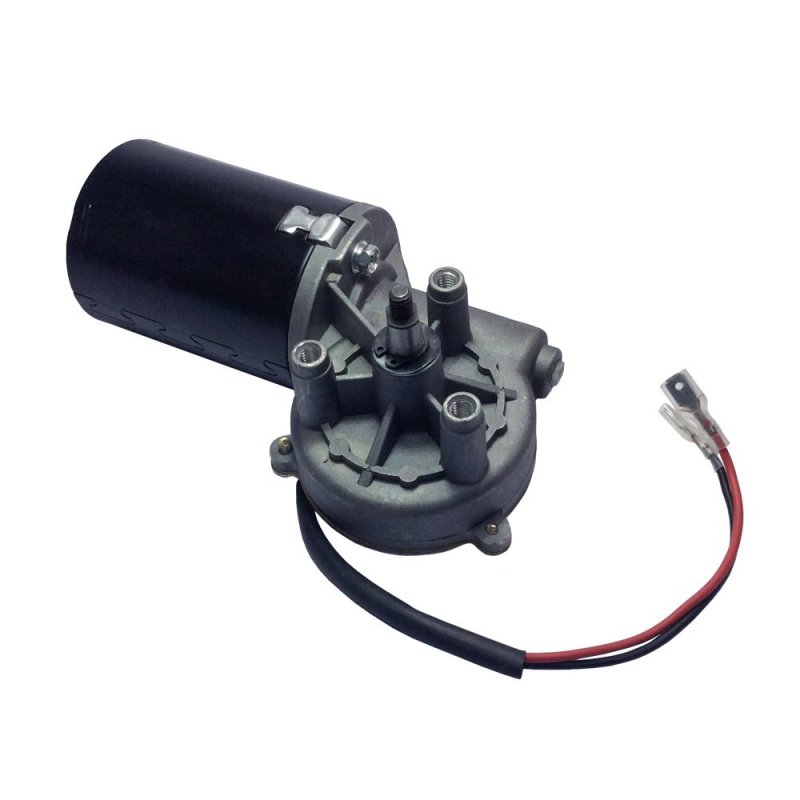

The High Torque PMDC Right Angle Gear Motor is a 12V reversible motor designed for heavy load applications requiring high torque and precise control. Its right angle gearbox and threaded shaft make it ideal for home automation and DIY projects.

• Voltage: 12V DC
• Speed: 50 RPM no load speed, 40 plus or minus 10 percent RPM load speed
• Power: 30W
• Torque: 6N.m rated torque
• Current: 1.2A no load current and 3.5A rated current
• Rotation: Reversible CW and CCW direction by changing wiring polarity
• Shaft Style: Right threaded shaft with self locking capability to prevent rotation when switched off
• Dimensions: 171 by 62mm or 6.74 by 2.44 inches
• Mounting: M6 screw holes
• Wire Length: 380mm or 15.0 inches
• Operational Temperature: Negative 25 degrees C to positive 65 degrees C
• Duty Cycle: 100 percent continuous run time
• Material: Metal
• Applications: DIY engines, rolling gate opening, door and window opening, barbecue motors, grill motors, windshield wipers, and home automation appliances
• Package Includes: 1 DC geared motor and 3 M6 screws
