Description:

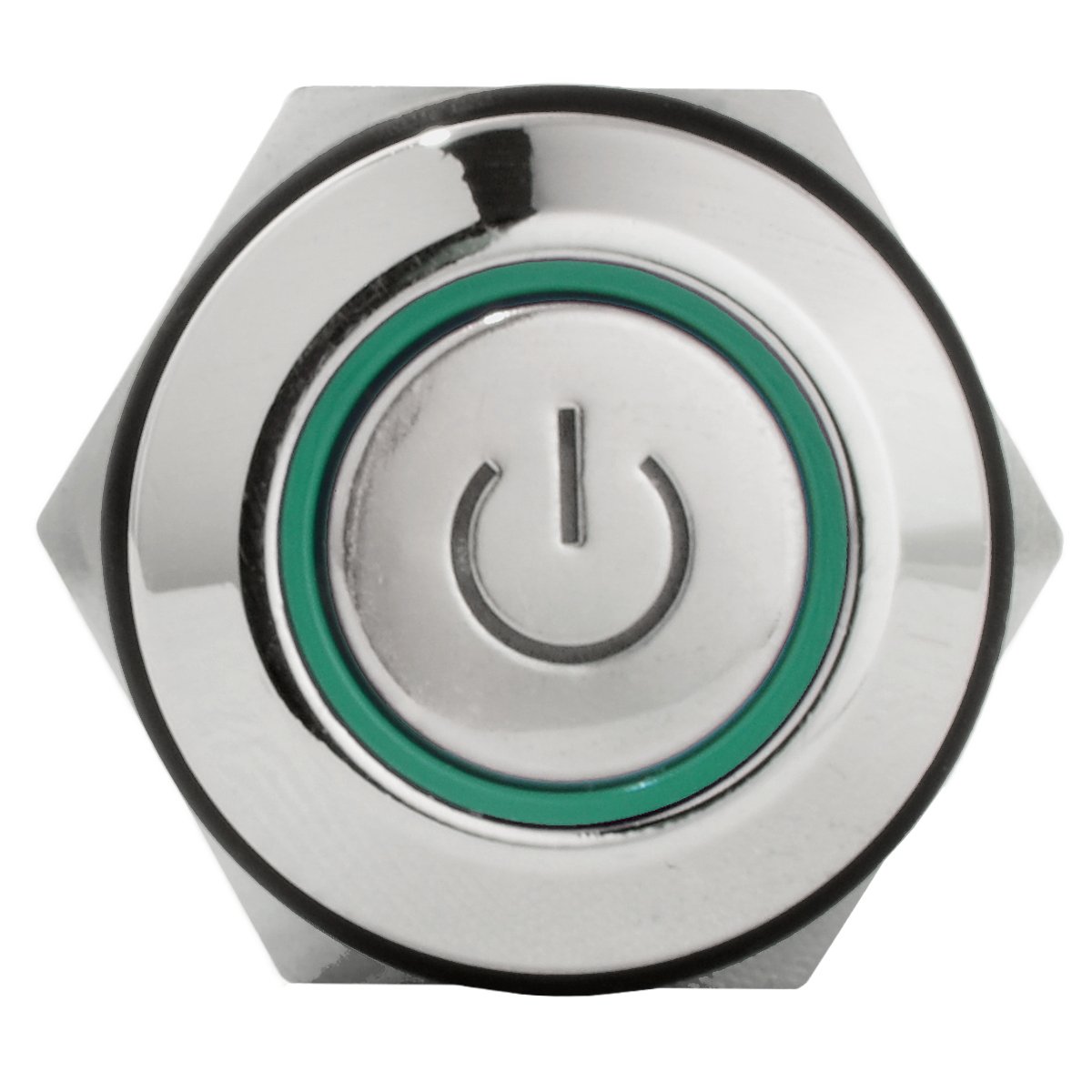

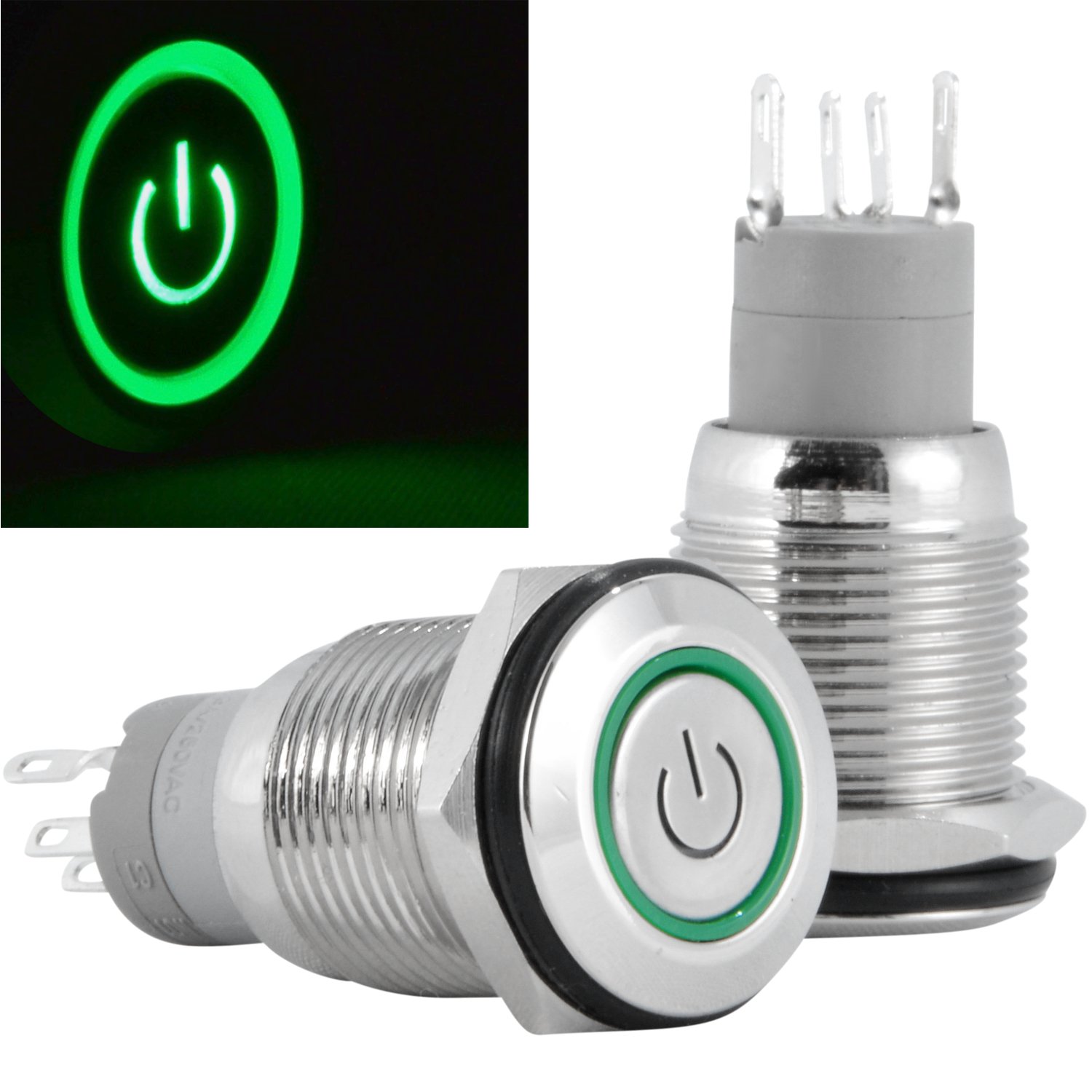

This latching maintained pushbutton ON OFF switch features a green power symbol LED light and a durable stainless steel construction. It provides a reliable and waterproof power control solution for cars, boats, computers, and electronics projects.

• Operation Type: Latching Push it ON, Push it again OFF
• Protection Rating: IP67 waterproof for resistance against heavy rain and splashes
• Material: Non oxidizing and corrosion resistant stainless steel
• Max Switch Rating: 250V AC DC 5A
• LED Rating: 12V DC 15mA
• Contact Type: SPDT 1NO1NC
• Panel Cutout Diameter: 5 8 inch 16mm
• Thread Depth: 5 8 inch 16mm
• Faceplate Diameter: 3 4 inch 18mm
• Total Depth Including Contacts: 1.5 inch 36mm
• Operating Temperature: negative 20 degrees to 55 degrees Celsius
• Mounting Type: Panel Mount
• LED Configuration: Separate from switch allowing for constant on or switch dependent wiring
• Included Components: Switch, metal nut, and rubber O ring
