Description:

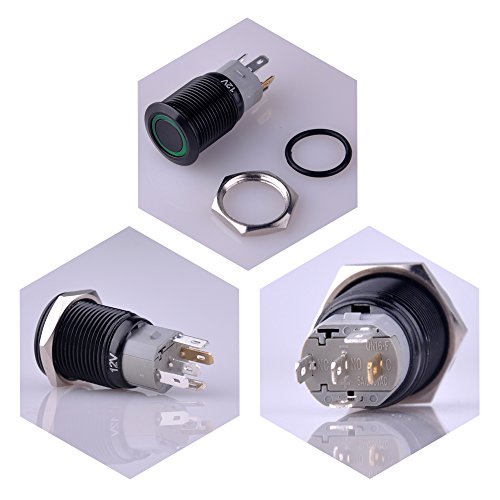

The Ulincos Momentary Push Button Switch is a rugged panel mount switch featuring an illuminated green LED ring for reliable circuit control in demanding environments.
- Switch Type: Momentary push button
- Operation: Normally open, remains ON while pressed and OFF when released
- Configuration: 1NO1NC SPDT

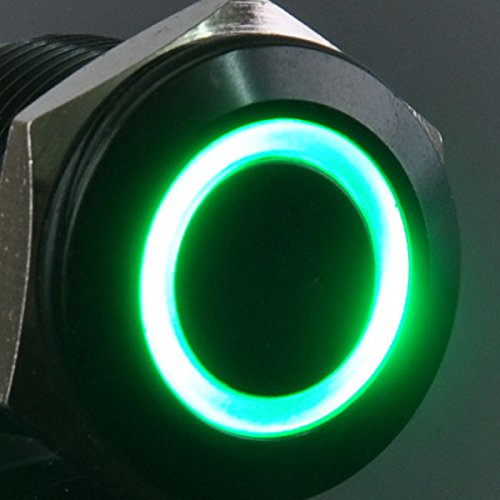

- LED Color: Green
- Material: Aluminum alloy shell
- Protection Rating: IP67 and IK10 water and dust resistant
- Switch Rating: 5A 250VAC or 5A 30VDC
- LED Rating: 15mA, AC DC 12V
- Mounting Hole Size: 16mm or 5/8 inch
- Thread Depth: 16mm or 5/8 inch
- Head Diameter: 18mm or 3/4 inch
- Button Diameter: 9mm or 0.36 inch
- Total Depth including contacts: 34mm or 1.3 inch
- Connector Type: Solder terminals
- Compatible Applications: Electromagnetic starters, relays, horn button switches, PC power switches, and general circuit controls
