Description:

This upgraded radio wire harness and antenna adapter kit allows for the seamless installation of aftermarket stereos in select Toyota and Scion vehicles. It provides a plug and play connection to the factory wiring system, ensuring a secure and stable setup without the need to cut original wires.

• Fitment: Compatible with select 1987 to 2007 Toyota and Scion vehicles and select Toyota Highlander 2001 to 2019

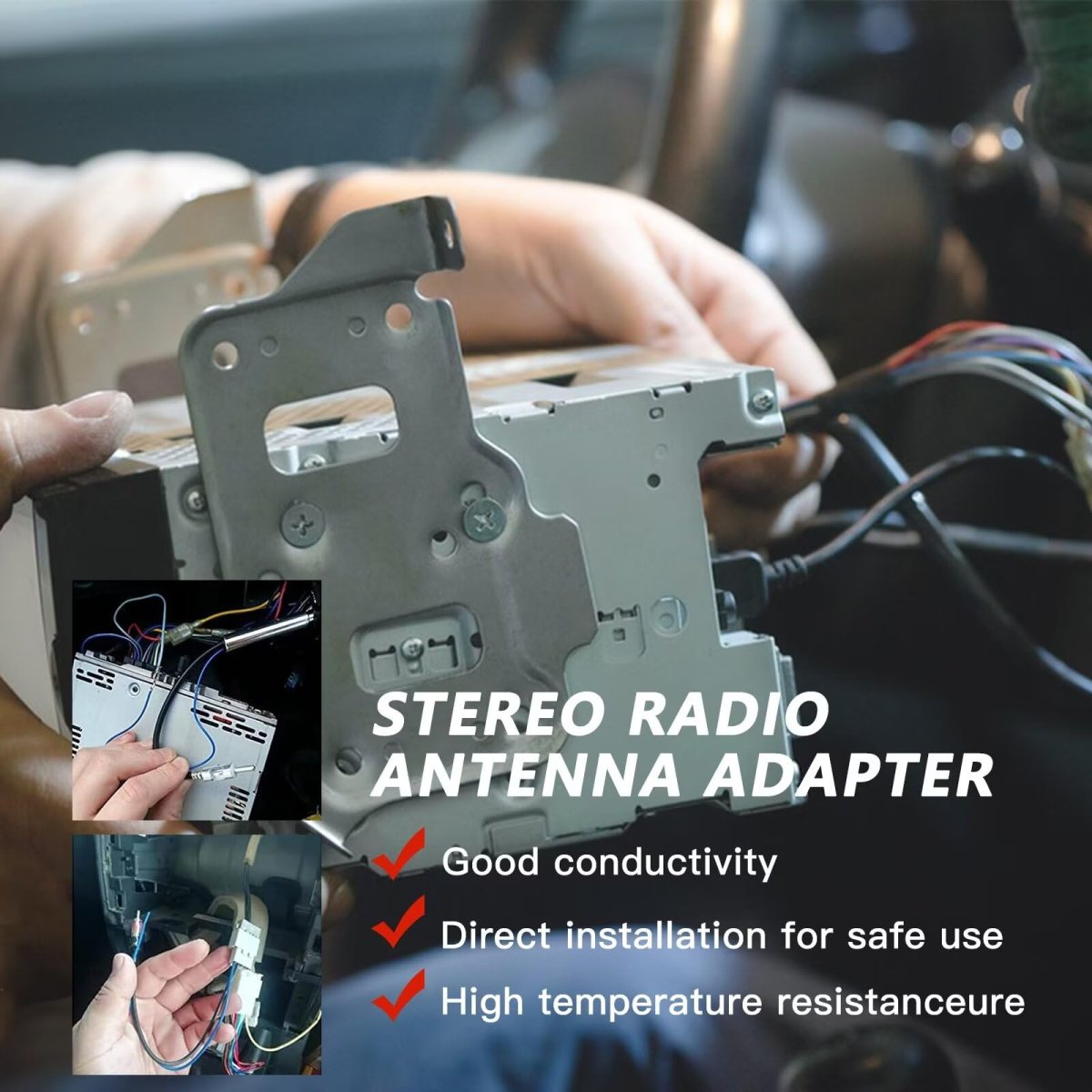

• Plug and Play: Directly connects to vehicle factory stereo antenna cable and wiring for quick installation

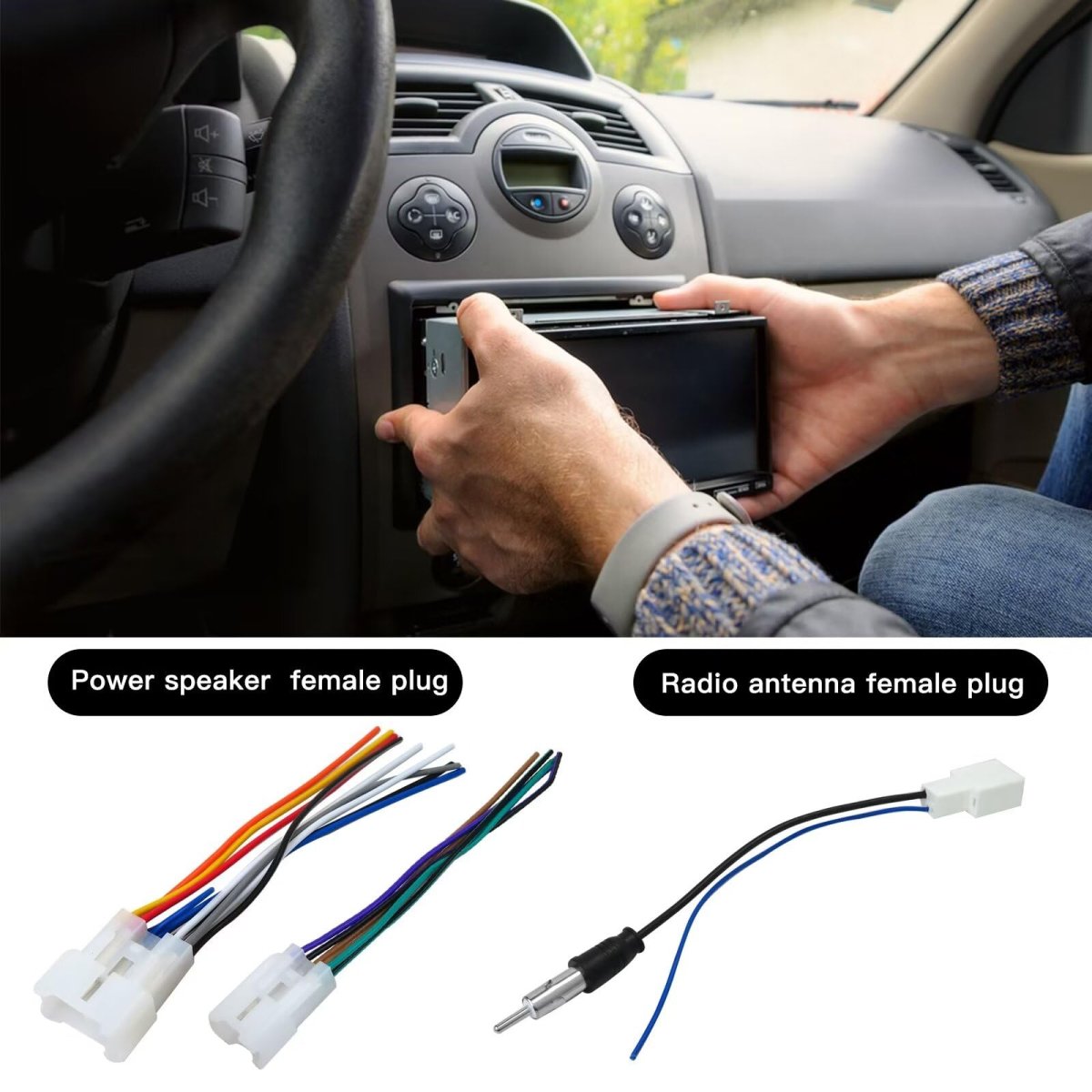

• Connector Configuration: Includes one 10 pin power speaker plug and one 6 pin plug
• Functionality: Enables AM and FM radio receiver function through the car head unit
• Compatibility Note: Designed for aftermarket stereos only and does not work on cars with factory amplifiers

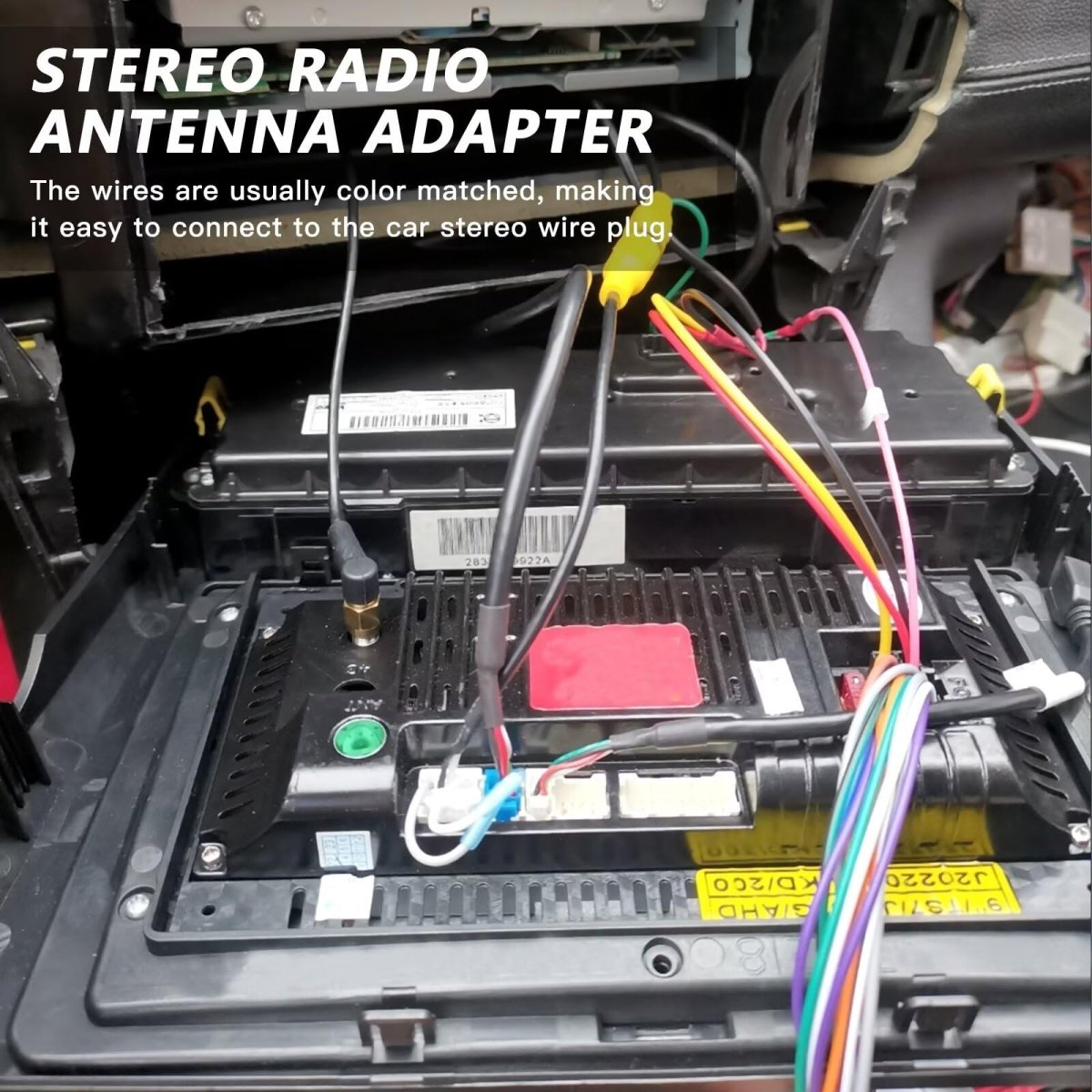

• Wire Diagram:
  • Orange: button light 12V positive
  • Yellow: B 12V positive
  • Red: ACC 12V positive
  • Black: ground wire negative
  • Blue: Antenna control
  • White: front left speaker
  • White with black: left front speaker negative
  • Gray: front right speaker
  • Gray with black: right front speaker negative
  • Green: left rear speaker positive
  • Green with black: left rear speaker negative
  • Purple: right rear speaker
  • Purple with black: right rear speaker negative

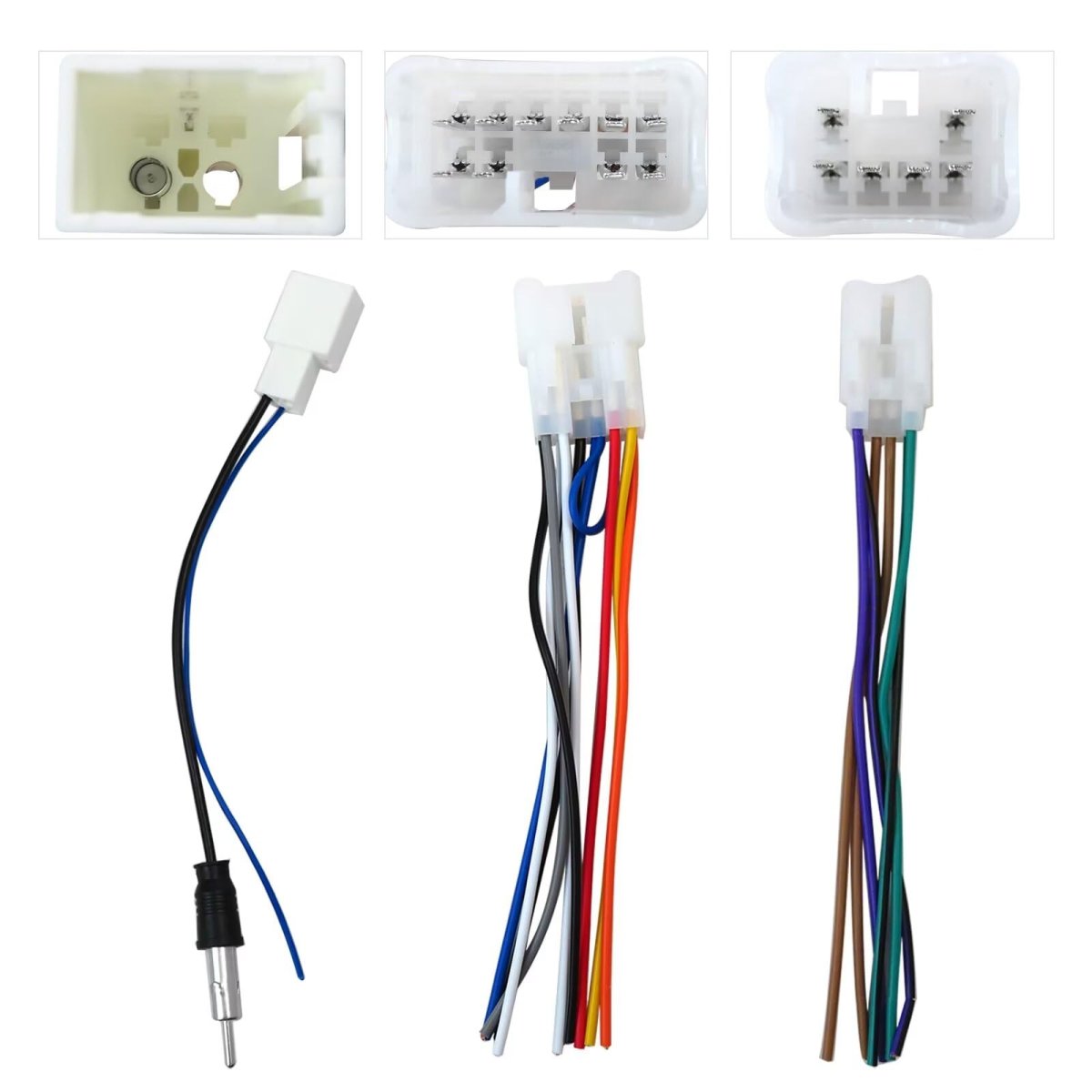

• Package Includes: One 10Pin Radio Wire Harness, one 6Pin Radio Wire Harness, and one Car Radio Antenna Adapter
