Description:

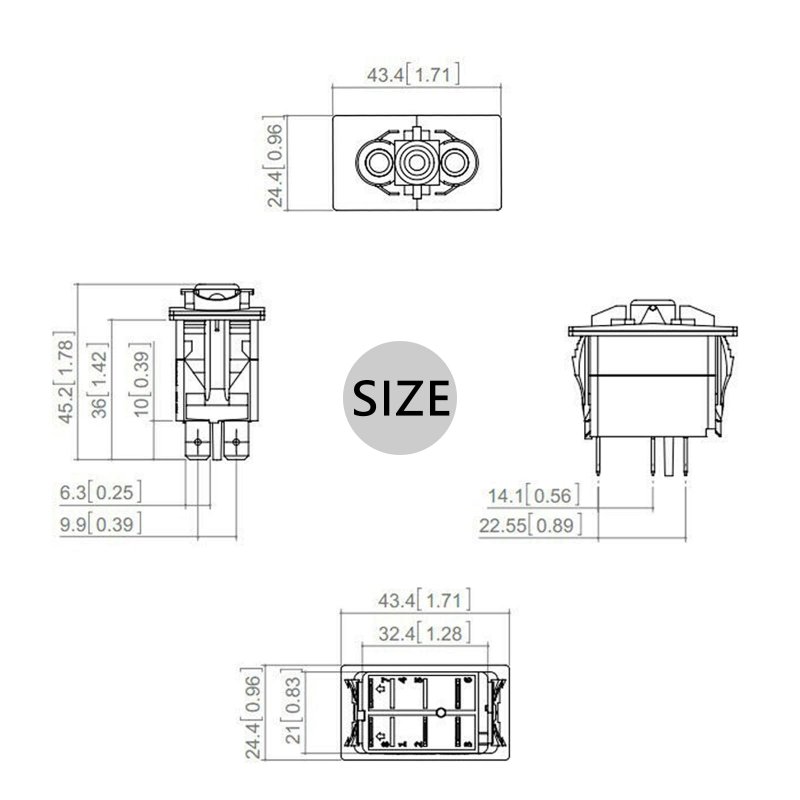

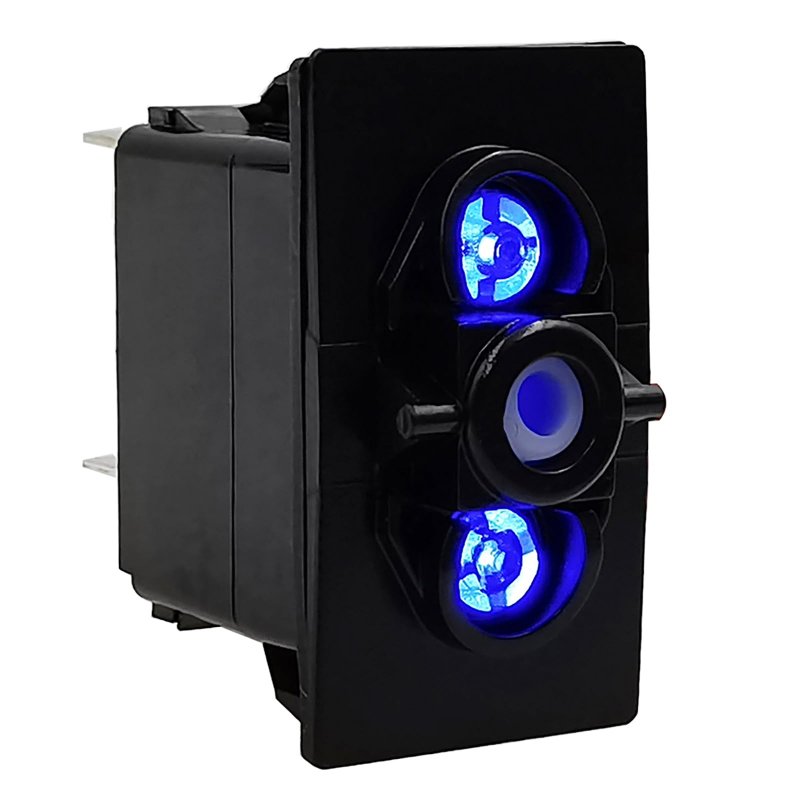

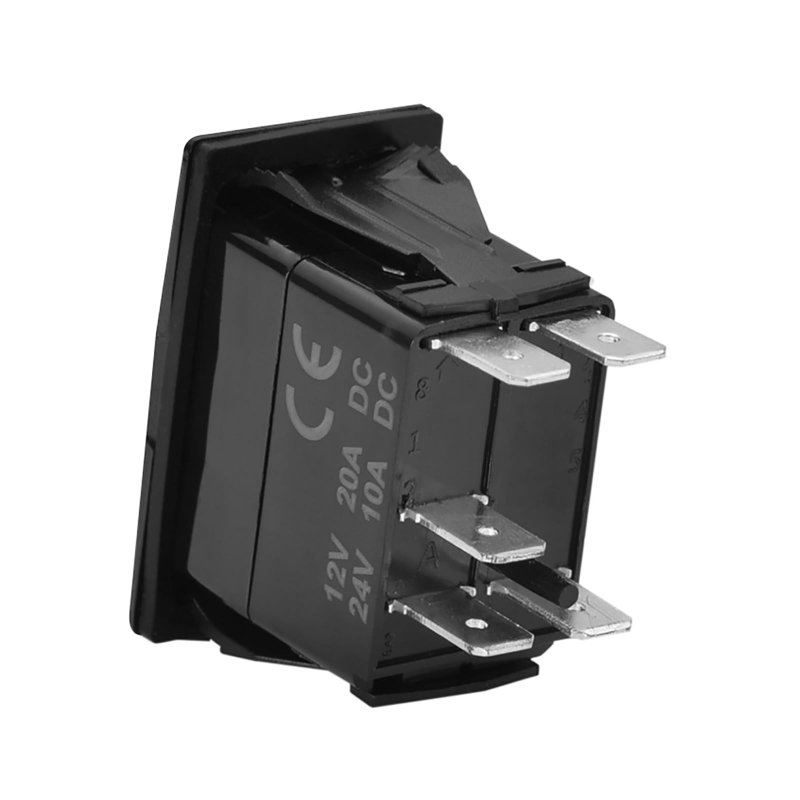

This is just a momentary rocker switch base, not a complete rocker switch. The base needs an actuator head(switch cover) to work and have to be held for working.. Dual blue led 5 PIN (ON)-OFF Single Pole Single Throw Momentary Switch Base. Sealed version: IP68 rated. The base will return to the off position after being pressed.. Rated at 20amp/12v DC and 10amp/24v DC; Required mounting hole size: 37.2 mm x 21.2 mm(1.46'' x 0.83''); Face Surface Size: 49mm x 25mm(1.91'' x 0.98'').. Suitable for all 12 / 24v car battery installation, such as cars , motorcycles , buses, boats , RVs , trailers, etc. Great for controlling horn, beacon, power,etc.. The package included : 1 X 5 pin rocker switch base..
