Description:

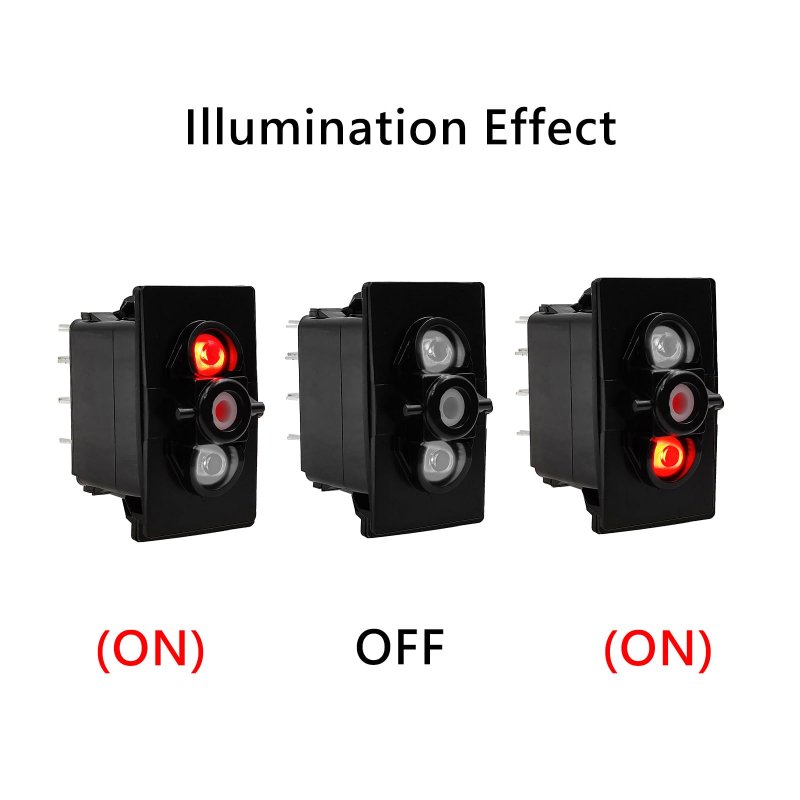

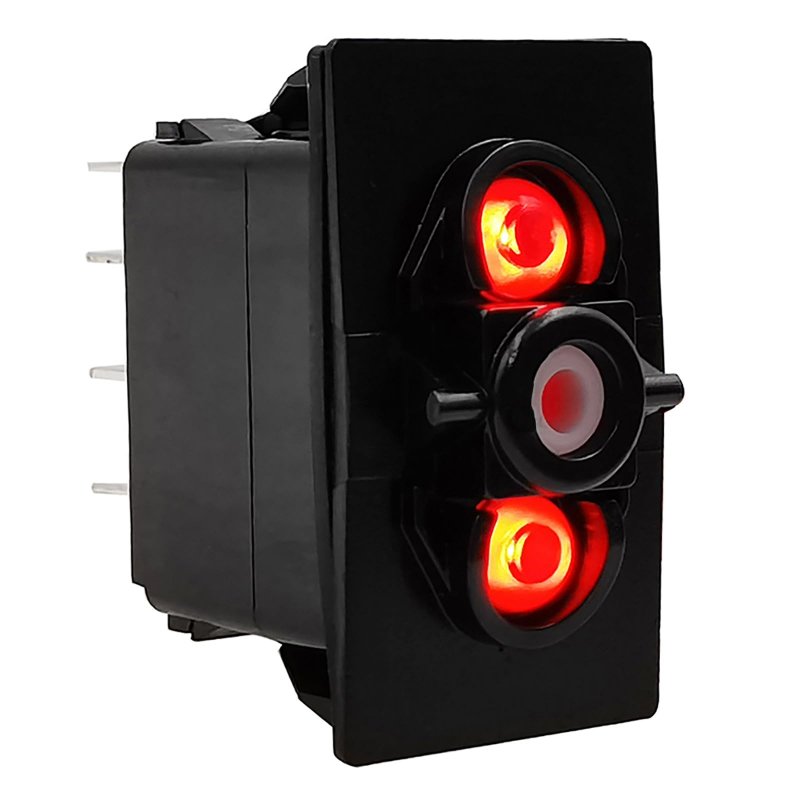

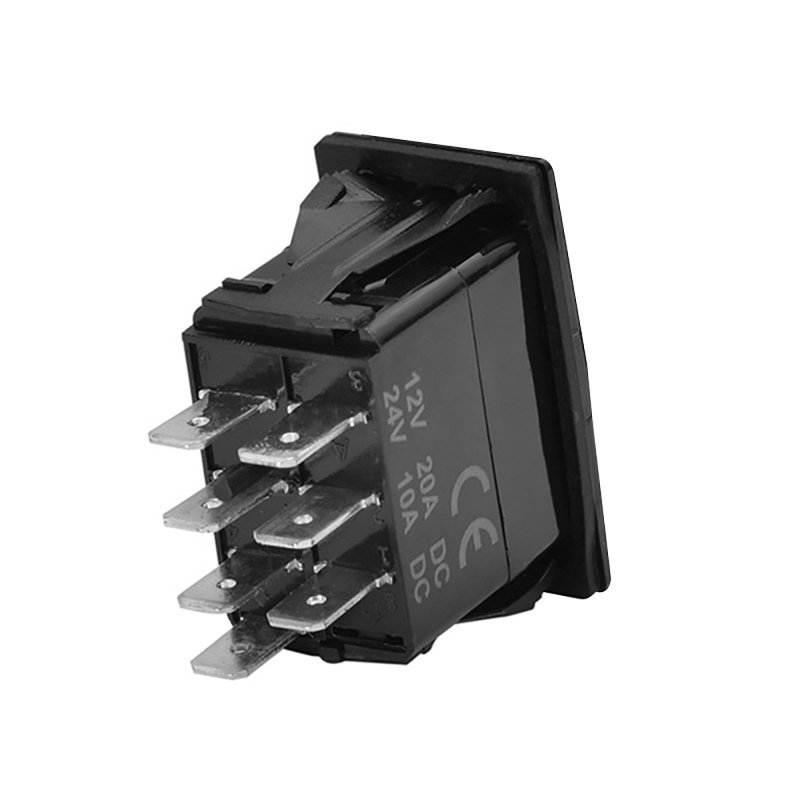

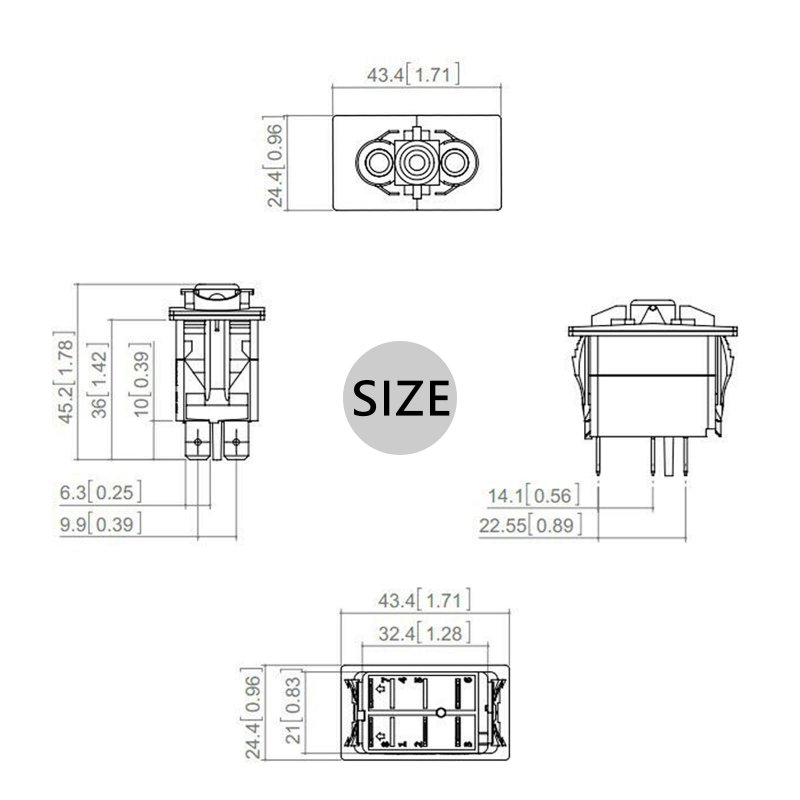

This is just a momentary rocker switch base, not a complete rocker switch. The base needs an actuator head(switch cover) to work and have to be held for working. Dual red led light 7p (on)-off-(on) double pole double throw momentary switch base.. The dpdt switch base has 3 positions: (on) - off - (on). When the switch is turned to the UP or DOWN position, both the light and device are working. The OFF position in the middle cuts off the power. Support reverse polarity.. Rated at 20amp/12v DC and 10amp/24v DC; Required mounting hole size: 37.2 mm x 21.2 mm(1.46'' x 0.83''); Face Surface Size: 49mm x 25mm(1.91'' x 0.98'').. Suitable for all 12 / 24v car battery installation, such as cars , motorcycles , buses, boats , RVs , trailers, etc. Great for controlling winch, hatch, windlass, window up/down,etc.. The package included : 1 X 7 pin rocker switch base..
