Description:

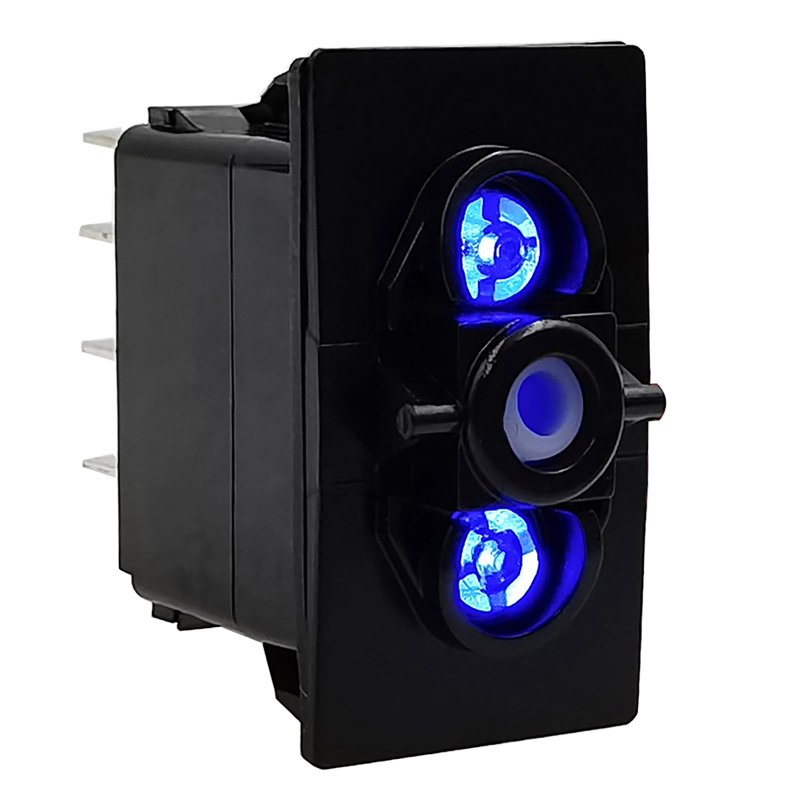

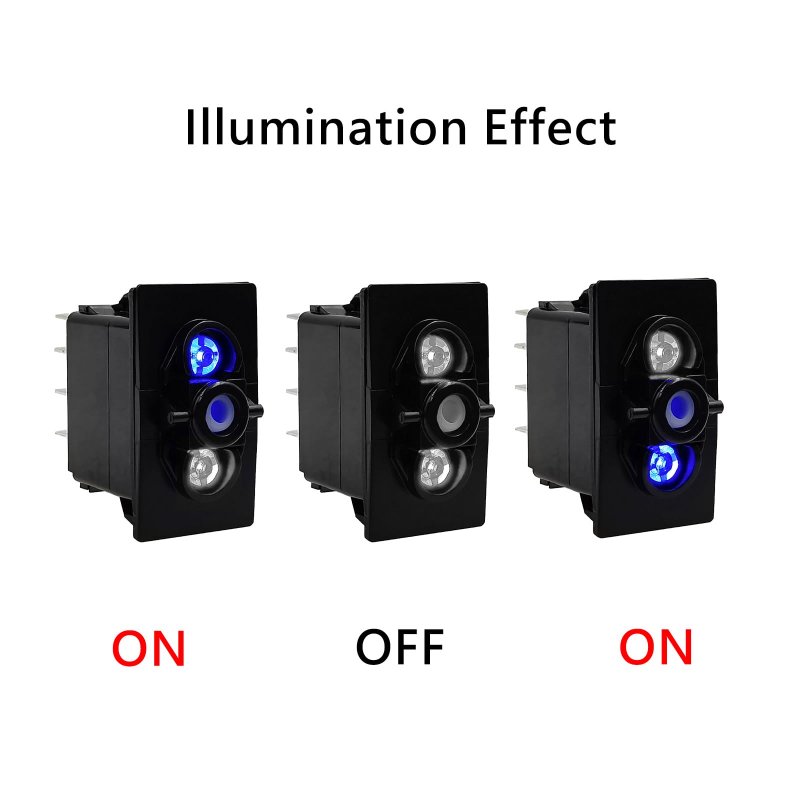

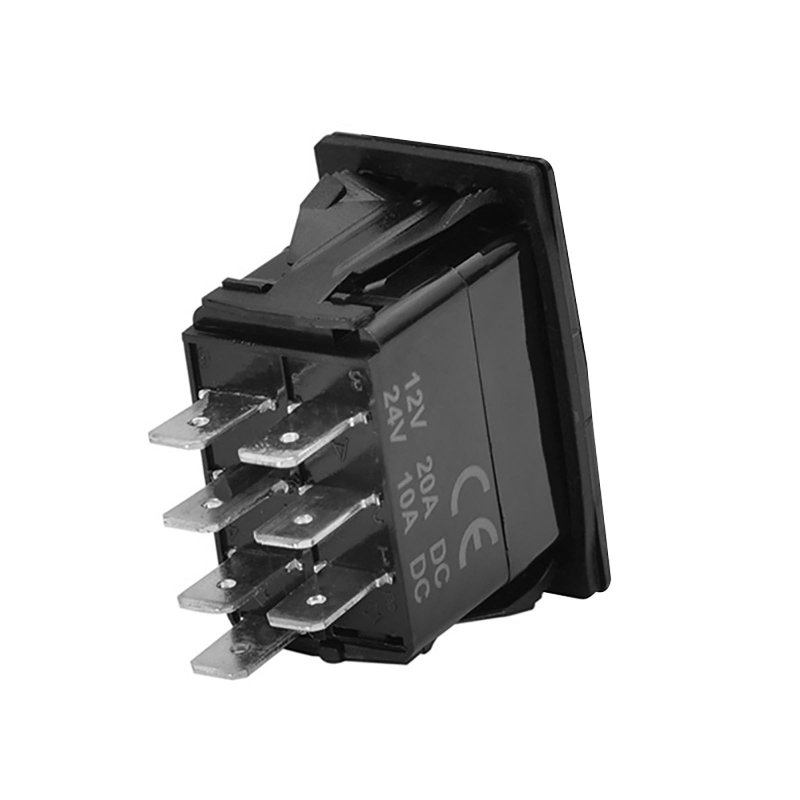

This is just a switch base, not a complete rocker switch.The base needs an actuator head(switch cover) to work. Dual blue led 7 PIN ON-OFF-ON Double Pole Double Throw Switch Base. Sealed version: IP68 rated.. The dpdt switch base has 3 position-ON-OFF-ON. The light and device are on when you turn the switch to the top/down position. The middle OFF position can cut off power.. Rated at 20amp/12v DC and 10amp/24v DC; Required mounting hole size: 37.2 mm x 21.2 mm(1.46'' x 0.83''); Face Surface Size: 49mm x 25mm(1.91'' x 0.98'').. Suitable for all 12 / 24v car battery installation, such as cars , motorcycles , buses, boats , RVs , trailers, etc. Great for controlling high/low beam, running lights/anchor lights, turn signal, etc.. The package included : 1 X 7 pin rocker switch base..
